PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder

PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90 GWS120 GWP75 GWP85 GWP95
Product Name:
PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder
Machine Type:
Pet Sheet Extruder Machine
Brand:
GWELL
Suitable Material:
PET
Width:
800-1500mm
Thickness:
0.15-1.5mm
Screw Design:
Single Screw / Parallel Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
High Light:

Twin Screw Pet Sheet Extruder Machine

,

R-PET Sheet Extruder Machine

,

pet sheet extrusion

Product Description

PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder



1. Brief introduction of PETG Sheet Making Machine

If you are interested in our PETG sheet making machine, please feel free to contact us. We sold hundreds of PETG sheet making machine every year. We have customers all over the world. This PETG sheet making machine is the most common machine type we can make. But we can also do some changes according to customer's requirements, like make big machine model for highoutput, wider T-die for wider sheet, Co-extruders for muti-layer sheet, etc. Await for your message : )

PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder 0

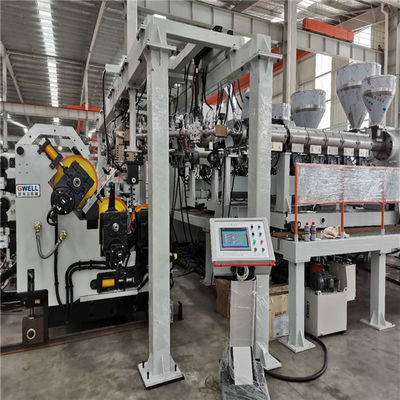

2. Introduction of PET Transparent film sheet production line

(1) PET sheet twin-screw exhaust Making Machine: APET, PETG transparent sheet twin-screw exhaust extrusion production line is improved from PET sheet single-screw making machine.The raw material processing non-crystallization, non-drying exhaust type PET sheet unit of this making machine has the advantages of low energy consumption and high efficiency. This model is a continuous improvement and upgrade product of Gwell. It has made significant improvements to the core vacuum system. The technology upgrades from the original Roots-water ring pump set to the Roots-rotary vane pump set, which can make the vacuum reach ≤10Pa. At the same time, the PET special alloy steel thin-walled roller set is used to greatly improve the cooling efficiency, thereby increase output, improve product toughness and transparency. The operating system independently written by Gwell ensures the humanization and easy operation of the making machine

PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder 1



3. Specification of PETG Sheet Making Machine

Type of machine GWP75 Twin screw+GWS65 Single screw GWP85 Twin screw+GWP52 twin screw GWP95 Twin screw+GWP65Twin screw
Width of product 800mm - 1000mm 800mm - 1200mm 1000mm - 1500mm
Thickness of product 0.15mm - 2mm 0.15mm - 2mm 0.15mm - 2mm
Output 300KG/H - 450KG/H 500KG/H - 600KG/H 800KG/H - 900KG/H





PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder 2





PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder 3







PETG Sheet Making Machine PET Transparent Film Production Line Twin Screw Extruder 4
