POE Solar Film Production Line Single Screw Design 400kg/H Output

POE Solar Film Production Line Single Screw Design 400kg/H Output

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical information is confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS120/GWS150/GWS160/GWS180
Product Name:
POE Film Extrusion Producing Line
Machine Type:
POE Solar Film Extrusion Line
Brand:
GWELL
Suitable Material:
POE
Film Structure:
Single Layer/three Layer (EPE)
Width:
1100mm, 1200mm, 1300mm, 2200mm 2400mm 2600mm
Die Lip Gap:
0.45mm 0.5mm 0.6mm
Film GSM:
400-600 Grams/sqm
Application:
Sealing Layer For Solar Panel
Incoterms:
FOB Shanghai
Machine Size:
30*6*6
Container Needed:
4-5 Containers
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical information is confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
High Light:

POE Solar Film Production Line

,

Single Screw Eva Film Extrusion Line

,

400kg/H Eva Film Extrusion Line

Product Description

POE Solar Film Production Line Single Screw Design 400kg/h Output



1. POE solar film machine introduction

POE solar film machine design is very similar to EVA solar film machine. It can use 120 type, 150 type, 160 type and 180 type single screw extrusion lines. But please notice the features of POE are different from EVA material, so by using the same machine model, the output of POE solar film is lower than EVA solar film.



2. Specification of EVA solar film machine:

Extruder type GWS160 GWS160 GWS180 GWS180
raw material EVA ,POE EVA ,POE EVA ,POE EVA,POE
Product width 2200mm, 2400mm, 2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 10m/min ,12m/min,15m/mn



Extruder type Co-extrusion GWS160+GWS160 Co-extrusion GWS180+GWS160 Co-extrusion GWS180+GWS180
raw material EVA ,POE EVA ,POE EVA,POE
layers A,A/B/A
Product width 2400mm,2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 15m/min, 16m/mn, 18m/min





3. Mixing system of EVA/POE solar film production line

In order to produce qualified EVA/POE film, it requires formula. The formula contains different types of materials in different state. At this time, we can equip customers with whole set of mixing system, it contains a conical mixer and related feeders. And based on the different features of EVA material and POE material, the time for mixing the two materials are different.  If you want to know more information, please contact us and we will share some more information and pictures for you.





4.

Differences between POE film machine and EVA film machine

For people who are not in extrusion industry, they will probably think that the EVA solar film machine and POE solar film machine are the same machine model. But actually, they are different. If you know the features of EVA material and POE material, then you will also understand that the different features between EVA material and POE material cause their machine designs to be different.

Because the EVA film extrusion line has the features of low strength, high water vapor transmission rate and water absorption rate, and its poor weather resistance, it needs to be edge-sealed when used on double glass modules. However, water vapor will still pass through during normal use, resulting in the film atomization which affects the light transmittance and reduces the power generation of the module.

And POE has a new type of polyolefin thermoplastic elastomer with narrow relative molecular mass distribution and narrow comonomer distribution and controllable structure.

There are currently two types of POE film on the market. One is a non-crosslinked polyolefin packaging material that does not contain a crosslinking agent and uses a combination of functional polymers to make the material's heat resistance and adhesion meet the requirements of use. The other is a cross-linked polyolefin encapsulating material containing peroxide cross-linking agent or silane cross-linking agent and tackifier. This kind of film is similar to EVA film in terms of production technology and process.

Compared with EVA film, the biggest advantage of POE film machine is low water vapor transmission rate and high volume resistivity, which ensures the safety and long-term aging resistance of the module in high temperature and high humidity environment, so that the module can be used for a long time. Generally speaking, the performance of POE film machine is superior to EVA film machine.

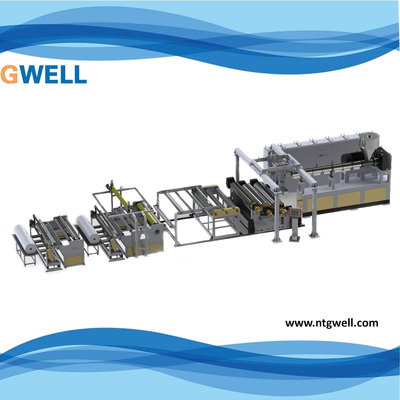

POE Solar Film Production Line Single Screw Design 400kg/H Output 0

POE Solar Film Production Line Single Screw Design 400kg/H Output 1
