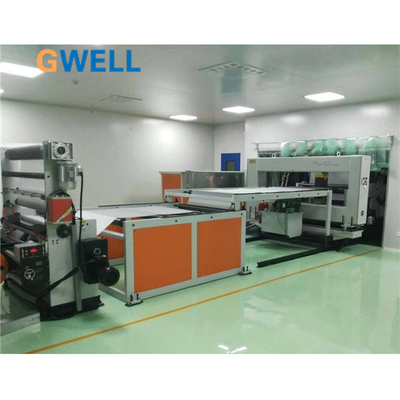

Photovoltaic Encapsulation Film Production Line Suitable For SGP

Photovoltaic Encapsulation Film Production Line Suitable For SGP

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: T/T, L/C
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS120/GWS150/GWS85/GWS95
Product Name:
SGP Photovoltaic Encapsulation Film Production Line
Machine Type:
Cast Film Extrusion Line
Brand:
Gwell
Suitable Material:
SGP
Width:
1300-3200mm
Thickness:
0.2-1.52mm
Screw Design:
Single Screw/Double Screw
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
T/T, L/C
Supply Ability:
200 sets per year
High Light:

SGP Cast Film Extrusion Line

,

Encapsulation Film Production Line

,

Photovoltaic Film Production Line

Product Description

SGP Photovoltaic Encapsulation Film Production Line



1. Introduction of SGP Photovoltaic Encapsulation Film production line

The SGP encapsulation film production line manufactured by GWELL adopts unique design and advanced manufacturing technology, which improves the stability and automation of the machine. The feeding system is connected with the extruder to realize the accurate online proportioning of raw materials, so that the quality of the SGP film is stable and labor cost will be reduced. Specially designed rollers are used to cool the SGP film uniformly and reduce the stress caused by uneven heating and cooling, thereby ensuring the correct shrinkage rate. Since the SGP film is relatively viscous, we have added an isolation film unwinding device to effectively prevent the SGP film from sticking together during rewinding.

Photovoltaic Encapsulation Film Production Line Suitable For SGP 0

2. SGP Photovoltaic Encapsulation Film production line introduction:

SGP film is mainly used for BIPV modules, the structure is tempered glass (super white)-SGP-cell-SGP-tempered glass (ordinary).

At present, the encapsulation forms of photovoltaic modules mainly include glass-EVA-backplane type and glass-SGP-glass type. I will elaborate on the SGP encapsulation film and SGP encapsulation film production line.

Photovoltaics is a rapidly developing emerging industry that converts solar energy into electrical energy. Among them, crystalline silicon solar cell modules are mainly used in large-scale grid-connected power generation, off-grid power stations, BIPV photovoltaic building integration, etc., and SGP encapsulation film production lines are mainly used in BIPV buildings,photovoltaic power generation components.

Photovoltaic Encapsulation Film Production Line Suitable For SGP 1

3. Machine model of SGP Photovoltaic Encapsulation Film production line



Machine model

GWS130

Single-screw GWS130

GWP85/GWP52

Twin screw GWP85/GWP52

GWP95/GWP65

Twin screw GWP95/GWP65



Suitable material

SGP



Film structure

A AB,ABA AB,ABA



Film width

1100mm - 1400mm 1400mm-2600mm 2400mm - 2800mm



Film thickness

0.2mm - 0.8mm



Output

350KG/H - 450KG/H 500KG/H - 600KG/H 650KG/H - 750KG/H
