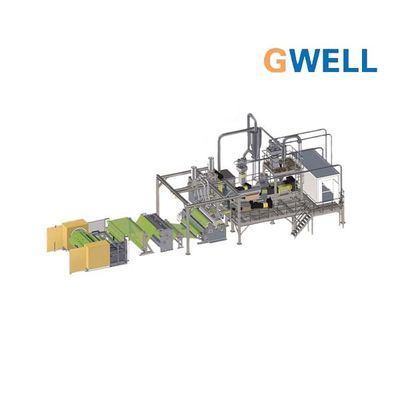

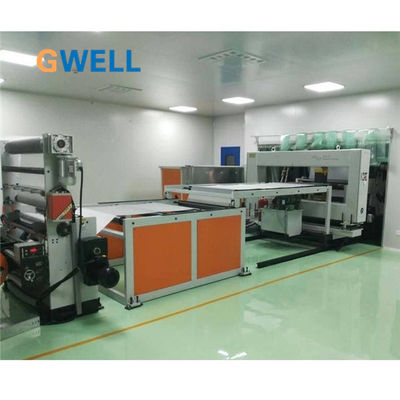

PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm

PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS150+GWS90/GWP95+GWP65
Product Name:
PVB Film Production Line PVB Building Automobile Glass Cast Film Extrusion Line
Machine Type:
Plastic Cast Film Extrusion Line
Brand:
GWELL
Suitable Material:
PVB
Width:
2000-3500mm
Thickness:
0.38-1.52mm
Screw Design:
Single Screw/Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
High Light:

Automobile Glass PVB Film Production Line

,

Automobile Glass Cast Film Extrusion Line

,

PVB Cast Film Extrusion Line

Product Description

PVB Film Production Line PVB Building Automobile Glass Cast Film Extrusion Line



I. Introduction of PVB Film Production Line and PVB Building Automobile Glass Cast Film Extrusion Line

Suzhou Gwell machinery CO. LTD. 's PVB film production line is a reliable brand. China's top three PVB manufacturers are using Gwell's PVB dry process (by roller) and PVB wet process (by water) film equipment. India's first PVB film production line is also made by Gwell.
PVB film width: 3600mm(Max)
PVB film thickness: 0.38-1.52mm
output: 500-800kg/h
shrinkage: ≤2%
total length of production line: 28m
It can be cut into desired width according to user's requirements.

PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 0



II. Features of PVB Film Production Line

1. Adapt to different types of processing systems with various material

2. From loading material to the final winding, it is using automatic mixing, PLC full integration, and it can do turnkey project

3. High output, low energy consumption and high degree of automation.

PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 1



III. Types of PVB Building Automobile Glass Cast Film Extrusion Line

PVB Building Automobile Glass Cast Film Extrusion Line is divided into two kinds. One is a dry process, also called roll method of the process, through the stretch film extrusion, cooling stereotypes winding in the air. The other is a wet process, also called water craft, stretch film extrusion of film through tank cooling stereotypes, blow dry after winding. There are a lot of equipment differences between two kinds of process , and their prices is also very different. The main machine can adopt single screw extruder or parallel twin screw extruder according to different needs and raw materials. Please consult the sales engineer for details. PVB glass film production line is the core technology of Gwell.

PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 2



IV. Models of PVB Film Production Line and PVB Building Automobile Glass Cast Film Extrusion Line:

Type GWP85 Twin screw extruder GWP95 Twin screw extruder GWP95+GWP52 Twin screw extruder
Production width 1220mm - 2440mm 1800mm - 3600mm 1800mm - 3600mm
Production thickness 0.38mm - 1.52mm 0.38mm - 1.52mm 0.38mm - 1.52mm
Output 500KG/H - 600KG/H 600KG/H - 700KG/H 700KG/H - 800KG/H



PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 3



PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 4PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 5PVB Building Automobile Glass Cast Film Extrusion Line 2000 - 3500mm 6
