Door Wall Panel ASA PVC Profile Extrusion Machine Line 350kg/H

Door Wall Panel ASA PVC Profile Extrusion Machine Line 350kg/H

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS120 GWC65/132
Product Name:
PVC Tile PVC Roof Profile Extrusion Line
Machine Type:
Plastic Board Extrusion Line
Brand:
GWELL
Suitable Material:
PVC Resin , ASA Resin
Width:
800-1500mm
Thickness:
0.8-5mm
Extruder Design:
Co-extrusion
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
High Light:

ASA Profile Extrusion Line

,

PVC Profile Extrusion Machine

,

Door Wall Panel Extrusion Line 350kg/H

Product Description

PVC Tile PVC Roof Profile Corrugated Board Extrusion Line Production Machine





Description:
PVC+ASA glazed tile or corrugated tile production line, applicable to the scope: mainly used in the roofing fields of flat slopes, houses, gardens and pavilions.
Product introduction: This product is a new generation of roofing material developed with foreign technology and designed for corrosive factories and heavy acid rain areas. This product is processed by two-layer co-extrusion technology at one time, and each layer has its own function. Surface material: super weather-resistant resin to ensure the durability and chemical resistance of the product; bottom material: white tough material to improve the sense of space and brightness of the plant. Two different materials give the product its own functional characteristics. The surface is smooth and combined, so that the new generation of APVC anticorrosive composite corrugated board solves the problems of product durability, corrosion resistance, low rigidity, sense of space and beauty.

Features:
1. Stable performance, no fading; resistant to long-term exposure, humidity, heat, cold, and no fading; use high-temperature weather-resistant engineering resin.
2. Resistant to chemical corrosion; it can stay in acid, alkali and salt environment for a long time, which is very suitable for areas with serious air pollution.
3. High physical strength; strong tensile strength and buckling resistance, capable of bearing a weight of 80 kg, and not easy to be broken or torn.
4. Fireproof; B1 grade fireproof material, high fireproof performance, not easy to burn.

Specification:
Extruder Specification Conical twin screw GWC65/132-GWC80/156-GWC65/132 Single screw GWS120-GWS65 Single screw GWS120
Raw Material PVC, ASA PC, ASA PP, PE
Structure of Product A/B/C, A/B/A, A/B, A A/B/A, A/B, A A
Wave Shape of Product Wave; corrugated; scale; hollow corrugated, etc Wave; corrugated; scale; hollow corrugated, etc Wave; corrugated; scale; hollow corrugated, etc
Thickness of Product 0.8mm-3mm 0.6mm-1.5mm 0.5mm-3mm
Width of Product 1200mm 1400mm 1050mm
Output 300kg/h-350kg/h 350kg/h-400kg/h 300kg/h-400kg/h

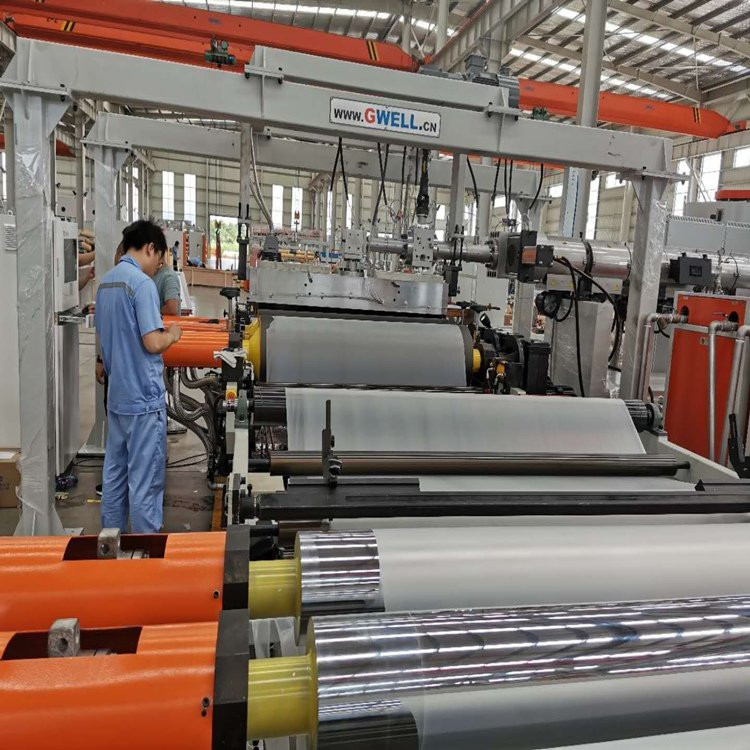

Door Wall Panel ASA PVC Profile Extrusion Machine Line 350kg/H 0

Door Wall Panel ASA PVC Profile Extrusion Machine Line 350kg/H 1

Door Wall Panel ASA PVC Profile Extrusion Machine Line 350kg/H 2

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
