Product Details:

Place of Origin: China
Brand Name: GWELL
Certification: CE
Model Number: GWS120/GWS160/GWS180

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time: 90 days after all the technical information is confirmed
Payment Terms: L/C, T/T
Supply Ability: 200 sets/yr
Get Best Price Contact Now

Detail Information

Product Name: EVA Film Extrusion Producing Line Machine Type: EVA Solar Film Extrusion Line
Brand: GWELL Suitable Material: EVA/POE
Film Structure: Single Layer/three Layer Width: 2200mm 2400mm 2600mm
Die Lip Gap: 0.4-1 Mm Production Line Design: Single Extruder/Co-extrusion
Usage: Sealing Layer For Solar Panel Shipping Port: Shanghai Yangshan Port By Sea
Service: Technical Paper, Technical Support, Engineer Support Guarantee Period: One Year
High Light:

Solar Module EVA Film Extrusion Line

,

Embossed Eva Solar Film Extrusion Line

,

Semi Transparent EVA Film Extrusion Line

Product Description

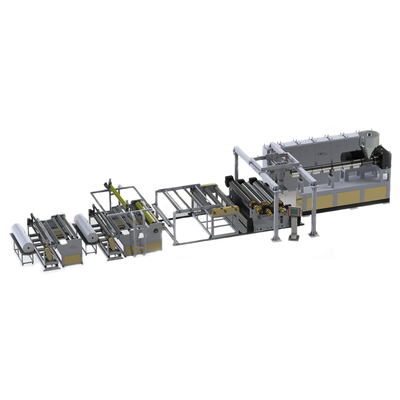

Embossed EVA Cast Film Production Line For Solar Module White Color Semi-Transparent

Embossed EVA cast film production line for solar module



1. EVA solar film machine design

Welcome to China Gwell Machinery Company. We are EVA solar film production machine and POE solar film production machine manufacturer. We started to make EVA solar film machine in 2010. Therefore, our engineers are very experienced about designing machine model, installing machine and adjusting machine. Now we have a lot of regular customers who hace already ordered 20 lines, 30 line, 60 lines or even more.Based on their feedback, GWELL updates the machine model every year when the market demand changes. Now we have 120 type machine, 150 type machine, 160 type machine, 180 type machine and 200 type machine.



2. Specification of EVA solar film machine:

Extruder type GWS160 GWS160 GWS180 GWS180
raw material EVA ,POE EVA ,POE EVA ,POE EVA,POE
Product width 2200mm, 2400mm, 2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 10m/min ,12m/min,15m/mn



Extruder type Co-extrusion GWS160+GWS160 Co-extrusion GWS180+GWS160 Co-extrusion GWS180+GWS180
raw material EVA ,POE EVA ,POE EVA,POE
layers A,A/B/A
Product width 2400mm,2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 15m/min, 16m/mn, 18m/min





3. MIxing system of EVA/POE solar film production line

To make it clear for all the customers, especially customers who are new in this industry, EVA/POE solar film needs formula. The formula contains different types of materials in different state. At this time, we can equip customers with whole set of mixing system, it contains a conical mixer and related feeders. If you want to know more information, please contact us and we will share some more information and pictures for you.





4. Performance characteristics of Gwell EVA/POE film production line

(1) The cast extruder adopts EVA special single screw extrusion and POE special single screw extrusion. The screw barrel constant temperature circulating water cooling system solves the technical difficulties of EVA/POE plasticization and non-crosslinking.

(2) The roller body adopts double-sided embossing, and solves the technical difficulties of the film sticking to the roller.

(3) The cooling part adopts cooling rollers and stress-relieving cooling beds to make the film run smoothly and fully shaped to ensure that the shrinkage rate is less than 3%.

(4) The whole line adopts PLC automatic control to realize the operation of man-machine interface.

(5) The production line is equipped with an online quality monitoring and control system to ensure the product qualification rate.

(6) Patented design micro-tension winder, the line speed of the whole machine production line can reach 18m/min

Embossed EVA Film Extrusion Line For Solar Module White Semi Transparent 0

Embossed EVA Film Extrusion Line For Solar Module White Semi Transparent 1
