ABS Plastic Sheet Extrusion Machine Process Parallel Twin Screw Extruder

ABS Plastic Sheet Extrusion Machine Process Parallel Twin Screw Extruder

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS120/GWP75
Product Name:
ABS Plastic Sheet Extrusion Machine Process Parallel Twin Screw Extruder
Machine Type:
Plastic Sheet Extrusion Line
Brand:
GWELL
Suitable Material:
ABS
Width:
1200mm
Thickness:
0.2-1.5mm
Screw Design:
Single Screw/Parallel Twin Screw
T-die:
JC-TIMES/ GWELL
Winder:
Double Working Position
Motor:
Siemens / WEG / OMEC
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
Highlight:

PS ABS Plastic Sheet Extrusion Process

,

PMMA ABS Plastic Sheet Extrusion Process

,

Ps Foam Sheet Extrusion Machine

Product Description

ABS Plastic Sheet Extrusion Machine​ Process Parallel Twin Screw Extruder



1. Gwell Company introduciton

Our company is a professional manufacturer of extruder for PE/PP/PP/ABS single screw extruder and its production line and auxiliary machines. With over 10 years of experience in the plastic machinery industry, our company has developed from the design, manufacturing, production, sales and service of plastic machinery to the delivery of customers. Accumulated a wealth of successful experience. Our company can also improve the function of the product according to the needs of the operators, so that the operation of the equipment is more simple and practical. The production philosophy of our company is to produce a high quality production line which is easy to operate and maintain.



2. Introduction of ABS Plastic Sheet Extrusion Machine

ABS Plastic Sheet Extrusion Machine, its impact strength is very good, and it can be used at extremely low temperatures. Excellent wear resistance, dimensional stability and oil resistance. ABS Plastic Sheet Extrusion Machine, but lower than PA and POM. The heat distortion temperature of ABS is 93 to 118°C, but it can be increased by about 10°C after annealing. It also has a certain degree of toughness at -40°C and can be used in the temperature range of -40 to 100°C. ABS sheet has high electrical insulation, is not easily affected by temperature and humidity, and can be used in most environments.

ABS Plastic Sheet Extrusion Machine, such as luggage, car body exterior panels, home decoration panels, bathroom panels, and plastic sheets.



3. Introduction of ABS sheet production machine

GWELL's ABS sheet production equipment can produce multi-purpose ABS Plastic Sheet Extrusion Machine with a thickness of 0.15mm-2mm. We use advanced machine manufacturing technology to make the machine run more smoothly and efficiently and reduce the failure rate. Our ABS sheet production machine can also produce ABS Plastic Sheet Extrusion Machine. It can achieve the purpose of one machine with multiple functions.

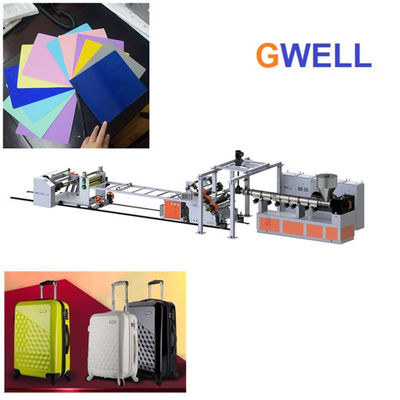

4. The entire extrusion production line consists of the following parts:

(1) Vacuum feeder: transport raw materials to the extruder

(2) Single screw extruder: plasticize raw materials and extrude molten raw materials

(3) Mold: according to customer requirements of the thickness range

(4) Three-roller calender: The diameter and length of the roller can be designed and manufactured according to customer requirements

(5) Cooling brackets: it is a cooling and conveying device

(6) Traction machine: use double pairs of rollers to haul the sheet

(7) Cutting unit: the role of cutting sheets

(8) Other auxiliary machines: chiller, air compressor, etc



4. Configuration of ABS Plastic Sheet Extrusion Machine:

Type of extruder Single screw extruder Parallel twin screw extruder
Max width of product                                      800mm--1300mm
Thickness of product 0.15mm-2mm 0.2mm-2mm
Output 150kg/h-450kg/h 200kg/h-600kg/h



ABS Plastic Sheet Extrusion Machine Process Parallel Twin Screw Extruder 0
ABS Plastic Sheet Extrusion Machine Process Parallel Twin Screw Extruder 1
