PP PE ABS PVDF Cabinet Board Extrusion Line 600kg H
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWS120/GWS150/GWS180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 90 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets/yr |
|
Detail Information |
|||
| Product Name: | PP PE ABS Board Production Machine Producing Machine Cabinet Board Outdoor Logo Board | Machine Type: | Board Extrusion Line |
|---|---|---|---|
| Brand: | GWELL Machinery (CHINA) | Suitable Material: | PP PE HDPE ABS |
| Width: | 1000-2000mm | Thickness: | 3-50mm |
| Screw Design: | Single Screw | Color: | Depends On Customer |
| Warranty: | One Year | After-sales Service: | Installation And Machine Debug |
| High Light: | PVDF Cabinet Board Extrusion Line,Cabinet Board Extrusion Line 600kg h,Abs Sheet Extrusion |
||
Product Description
PP PE ABS Board production machine Producing Machine Cabinet Board Outdoor Logo Board

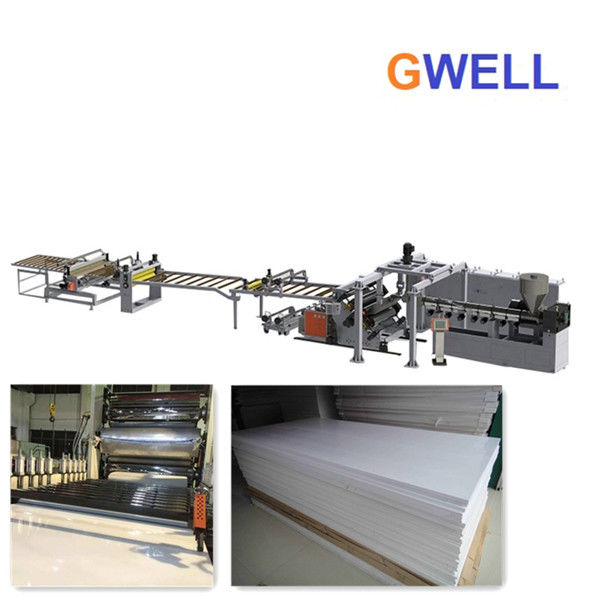

1. Information of PE thick plate production line
The PE thick plate production line equipment manufactured by GWELL company uses the latest technology and big brand parts, combined with our company's years of plate equipment manufacturing technology and experience, to make the machine more reliable and complete. Its products have smooth surface, small dimensional error, corrosion resistance, strong insulation and many other advantages.
2. Information of PE thick plate production line

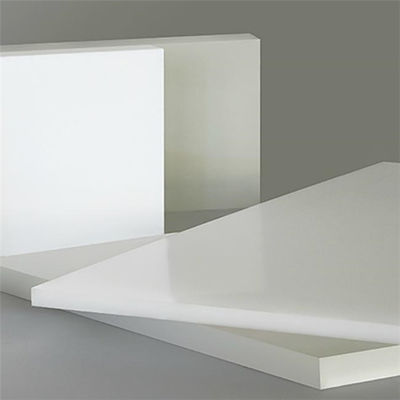

polyethylene (HDPE) plate is widely used in chemical industry, electric power and other industries. HDPE board can also be used as engineering plastics in machinery, chemical equipment, widely used in the manufacture of ice court wall board.
ABS thick plate production line: ABS thick plate is widely used in home appliances, electronics, packaging, medical devices and other industries, and also widely used in the field of plastic suction.
Specification:
| Extruder Specification | GWS120 Single screw extruder | GWP75 Twin screw extruder | GWP85 Twin screw extruder |
| Suitable Material | ABS, PP, HDPE, PVDF | ||
| Thickness of Product | 3mm-30mm | 3mm-30mm | 3mm-30mm |
| Width of Product | 800mm - 1000mm | 1000mm - 1500mm | 1200mm - 2000mm |
| Output | 300kg/h-400kg/h | 400kg/h-500kg/h | 500kg/h-600kg/h |
Gwell company has exported hundreds of extrusion machines and our customers from the United States, Germany, Japan, South Korea, Russia, Spain, Turkey, Indonesia, India, South America, Algeria and other countries, highly praised by customers. Products such as photovoltaic back film, PP construction board machines are one of the earliest Chinese enterprises involved in this field, the equipment has also experienced many upgrades and improvements, the latest model equipment stability is good, easy to operate, greater output.
