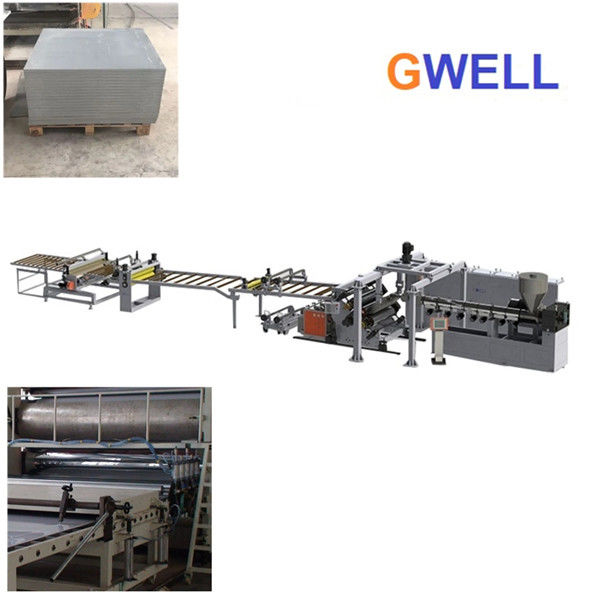

PETG Board Extrusion Line For Cabinet Advertising Display

PETG Board Extrusion Line For Cabinet Advertising Display

Brand Name:	GWELL
Model Number:	GWS90/GWS120/GWS130
MOQ:	1 set
Price:	Negotiable
Delivery Time:	90 days after all the technical requirements are confirmed
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PETG Board Making Machine

Brand:

GWELL

Country Of Origin:

China

Suitable Material:

PETG, Modified PET Material

Width:

800-1500mm

Thickness:

2-10mm

Screw Design:

Single-screw/parallel Twin-screw

Product Application:

Advertising Board, Separation Board, Cabinet Board

Sheet Structure:

Single Layer

Color Of Sheet:

Transparent, Colored

Warranty:

One Year

After-sale Service:

Installation And Machine Debug

Packaging Details:

STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS

Supply Ability:

200 sets/yr

Highlight:

Advertising Display Board Extrusion Line

PETG Board Extrusion Line

PETG Cabinet Sheet Extrusion Line

Product Description

PETG Board Making Machine Used For Cabinet Board Advertising Board

1. Company brief introduction

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.

2. Introduction of PETG material and board

PETG, the full English name Poly (ethylene terephthalate-1, 4-cylclohexylenedimethylene terephthalate), is a transparent, non-crystalline copolyester. The performance of PETG is not the same as PET.

PETG sheet has outstanding toughness and high impact strength. Its impact strength is 3-10 times that of modified polyacrylates. Compared with APET, it has a wide processing range, high mechanical strength excellent flexibility, high transparency, good gloss, easy printing and environmental protection.

While PETG sheet has the characteristics of APET sheet, its major features are outstanding heat sealing performance, easy operation during sealing and reliable heat sealing quality. Compared with APET, PETG won't be crystallized even under a very high molding temperature.For vacuum forming, even clear contours of complex geometric shapes can be obtained. However, due to its relatively high price, the application is subject to certain restrictions.

The chemical stability of PETG is the same as that of APET.

3. Main Features of PETG sheet/board

(1) Chemical resistance

PETG sheet can withstand a variety of chemicals and commonly used cleaning agents.

(2) Environmental friendly

The PETG sheet substrates are all environmentally friendly materials, which meet the requirements of food contact management.

(3) Economy

It is cheaper than PC board and more durable than acrylic.

Thermoformability

PETG sheets are easy to produce products with complex shapes and large stretch ratios. Moreover, unlike PC board and impact-modified acrylic, this board does not need to be pre-dried before thermoforming. Compared with PC board or acrylic, its molding cycle is short, the temperature is low, and the yield is higher.

(4) Toughness

The extruded sheet of PETG sheet is usually 15 to 20 times tougher than general acrylic and 5 to 10 times tougher than impact modified acrylic. PETG sheet has sufficient bearing capacity during processing, transportation and use, which helps prevent cracking.

(5) Weather resistance

PETG sheet provides excellent weather resistance. It can maintain the toughness of the product and prevent yellowing. It contains ultraviolet absorbers, which can be co-extruded into a protective layer to protect the board from the harmful effects of ultraviolet rays.

(6) Easy to process

PETG sheet can be sawed, die-cut, drilled, punched, sheared, riveted, milled and cold-formed without breaking. Slight scratches on the surface can be eliminated with a hot air gun. Solvent bonding is also a normal operation. It is easier to process than general acrylic, impact modified acrylic or PC board, and can be processed for flocking, electroplating, static electricity and other processing.

4. Machine models

Type of machine	GWP75 Twin screw+GWS65 Single screw	GWP85 Twin screw+GWP52 twin screw	GWP95 Twin screw+GWP65Twin screw
Width of product	800mm - 1000mm	800mm - 1200mm	1000mm - 1500mm
Thickness of product	0.15mm - 2mm	0.15mm - 2mm	0.15mm - 2mm
Output	300KG/H - 450KG/H	500KG/H - 600KG/H	800KG/H - 900KG/H

Type of machine	GWS90 single screw	GWS120 single screw	GWS150 single screw
Width of product	600mm - 800mm	800mm - 1200mm	1000mm - 1500mm
Thickness of product	0.15mm - 2mm	0.15mm - 2mm	0.15mm - 2mm
Output	150KG/H - 200KG/H	300KG/H - 400KG/H	400KG/H - 500KG/H

PETG Board Extrusion Line For Cabinet Advertising Display 0

PETG Board Extrusion Line For Cabinet Advertising Display 1

PETG Board Extrusion Line For Cabinet Advertising Display 2

PETG Board Extrusion Line For Cabinet Advertising Display 3
