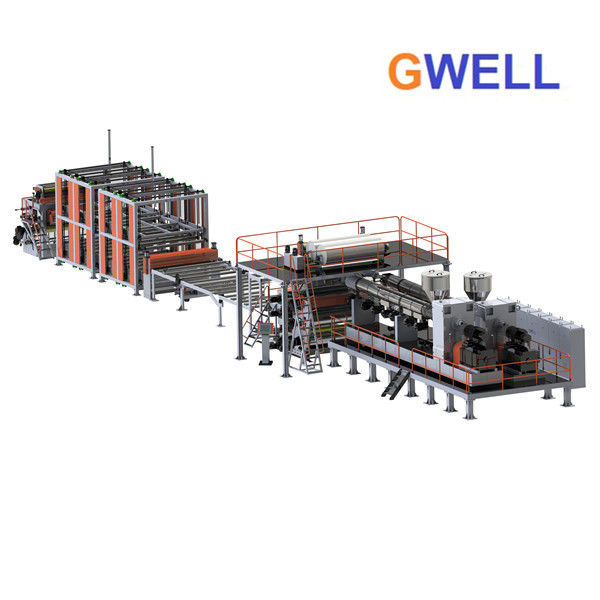

Tpo Single Ply Waterproofing Membrane Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWP75 GWS130 GWS95 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per year |
|
Detail Information |
|||
| Product Name: | TPO Waterproof Coil Waterproofing Membrane Production Line | Machine Type: | Plastic Waterproof Membrane Extrusion Line |
|---|---|---|---|
| Brand: | GWELL | Suitable Material: | TPO |
| Width: | 2100mm | Thickness: | 1-3mm |
| Screw Design: | Single Screw / Parallel Twin Screw | Country Of Origin: | China |
| Warranty: | One Year | After-sales Service: | Installation And Machine Debug |
| High Light: | Single Ply Waterproofing Membrane Production Line,Tpo Waterproofing Membrane Production Line,Waterproofing Membrane Sheet Extruder |
||
Product Description
TPO Waterproof Coil Waterproofing Membrane Production Line Used for Building Waterproof Engineering
Description:
Gwell TPO waterproof coil production line is a special TPO machine developed by our company based on many years' production experience of our customers. The design concept and technical content are of guiding significance to the industry. The production is stable, with high output, low defect rate and easy operation. It can meet the production of homogeneous coil (H type), fiber backing coil (L type), fabric reinforced coil (P type). The production line is simple in structure and easy to operate. Different equipment components can be configured according to customers' requirements to produce single-layer and multi-layer composite products. It can also be added winding device, and produce internal enhancement products or surface composite non-woven products.
Specification:
| Type of extruder | Parallel twin-screw extruder GWP75/GWP75 | Single screw extruder GWS130/GWS130 | Parallel twin-screw extruder GWP95/GWP95 |
| Structure of product | TPO; TPO-NET-TPO; NET-TPO-NET | TPO; TPO-NET-TPO; NET-TPO-NET | TPO; TPO-NET-TPO; NET-TPO-NET |
| Width of product | 2100mm | 2100mm | 2100mm |
| Thickness of product | 1mm-3mm | 1mm-3mm | 1mm-3mm |
| Output | 1000kg/h | 1000kg/h | 1000kg/h |
| Line speed | 10m/min | 10m/min | 10m/min |
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
