| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets per year |

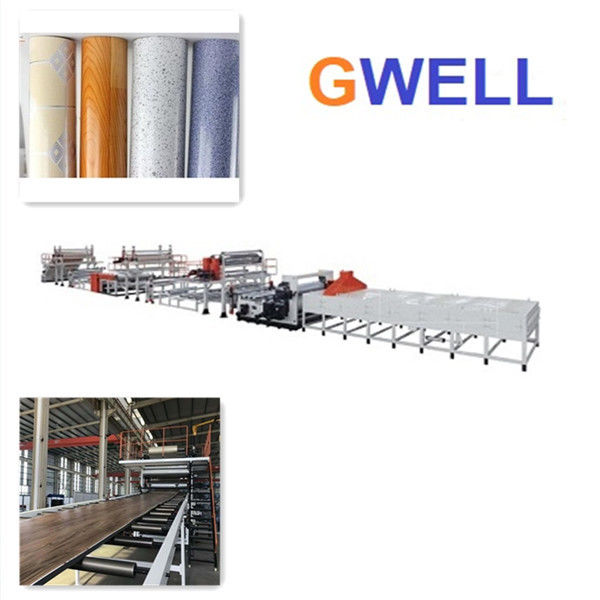

PVC Wide Floor Leather making machine Parquet Flooring Production Line 400kg H
1. Different types
Among these types, the multi-layer composite PVC floor production line means that it has a multi-layer structure, which is generally laminated by 4-6 layers, specifically: wear-resistant layer (including UV treatment), printed film layer, glass fiber layer, elastic foam layer, grinding layer, base layer, etc. These different structures are specially treated and combined into one, so that they have good heat resistance, moisture resistance, quality stability, anti-aging, antibacterial, quiet, wear-resistant, fire-retardant, and other advantages.
(1)PVC ordinary floor leather extrusion line is: a single material from top to bottom, laminated with a layer of wear-resistant layer to increase the service life of the floor leather. In the plastic floor, it is suitable for various environmental requirements.
(2)Semi-homogeneous floor leather extrusion machine is multi-layer core leather combined with homogeneous floor leather extrusion machine. Usually, the surface layer is homogeneous core and the bottom layer is basic layer. The purpose of creating this semi-homogeneous floor is that some customers want homogeneous floor but worry about the price.
2. Introduction of PVC floor leather making machine
PVC floor leather production machine: The main raw material is PVC resin (polyvinyl chloride). There are three types of PVC floor leather: multi-layer composite PVC floor leather, homogeneous core PVC floor leather machine and semi-homogeneous floor leather.
Gwell plastic transparent sheet unit production line absorbs and digest western country advanced extrusion technology. And its main parts choose from all over the world (such as screw, barrel, roller, etc.). The energy consumption of its complete sets of equipment , intelligent, automation, safety standard, technology standard, etc., have been at or near the world standard of the product. This series of products has a number of inventions and utility model patents so that it replaces imported equipment, and has a cost-effective advantage.
3. Specification:
| Type of extruder | Single screw extruder GWS120/34 | Conical twin-screw extruder GWC80/156 | Parallel twin-screw extruder GWP85/36 | Parallel twin-screw extruder GWP95/40 |
| Width of product | 1500mm-2000mm | 1500mm-2000mm | 2000mm-3000mm | 2000mm-3000mm |
| Thickness of product | 2mm-4mm | 2mm-4mm | 2mm-4mm | 2mm-4mm |
| Output | 300kg/h-350kg/h | 300kg/h-350kg/h | 400kg/h-500kg/h | 550kg/h-600kg/h |
