PET Sheet Making Machine PET Transparent Sheet Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWS90/GWS120/GWP85 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 150000-389000 |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 90 days after all the technical requirements are confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets/yr |
|
Detail Information |
|||
| Product Name: | PET Sheet Making Machine PET Transparent Sheet Production Line | Machine Type: | Plastic Sheet Extrusion Line |
|---|---|---|---|
| Brand: | GWELL | Suitable Material: | PC PMMA PET GPPS MS |
| Width: | 600-1220mm | Thickness: | 0.125-3mm |
| Sheet Structure: | Single Layer/double Layer/three Layer/multi-layer | Screw Design: | Single Screw |
| Country Of Origin: | China | Warranty: | Guarantee Period |
| After-sales Service: | Installation And Machine Commissioning | ||
| High Light: | Multi Layer Plastic Sheet Extrusion Line,Plastic Sheet Extrusion Line for Pet,Pet Film Extrusion Line |
||
Product Description

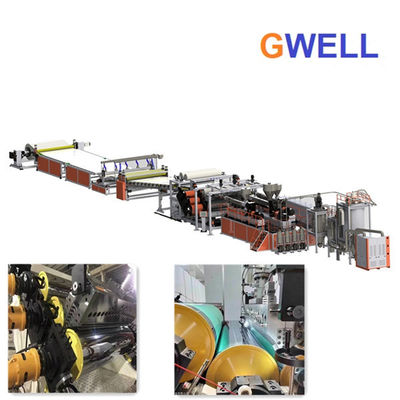

PET Sheet Making Machine PET Transparent Sheet Production Line
1. PET Sheet Making Machine:
high mechanical strength, rigidity and hardness. Good sliding performance and abrasion resistance, good electrical insulation. It has very good dimensional stability, weather resistance, and chemical resistance.
PET sheet making machine are processed from ordinary APET raw materials and special modified PET raw materials. Due to its superior cost performance, it can replace PC/PMMA/GPPS board in many occasions such as construction, decoration, and advertising. Our equipment can produce 8mm thick APET and PETG sheets.
2. PET transparent sheet production line:
The PET sheet making machine developed by GWELL Company is currently filling the lack of this kind of equipment in the market. PET transparent sheet production line have broad prospects in China. Compared with ordinary PET sheet making machine, the maximum thickness can only reach 1.5mm, while the maximum thickness of PET thick plates can reach 5mm.
3. Model of PET Sheet Making Machine:
| Type | GWS90-800 | GWS120-1000 | GWS150-1500 |
| Raw materials | PET | ||
| Product width | 600mm--800mm | 1000mm--1300mm | 1000mm--1500mm |
| Product thickness | 0.5-5mm | 0.5-5mm | 0.5-5mm |
| Extruder type | Single screw GWS90/35 | Single screw GWS120/35 | Single screw GWS150/35 |
| Design output | 200Kg/h | 350Kg/h | 450kg/h |
