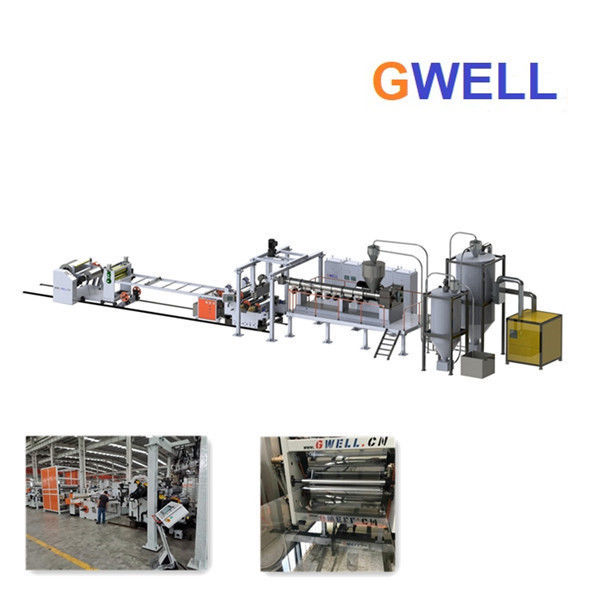

PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H

PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90 GWS120 GWP75 GWP85 GWP95
Product Name:
PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H
Machine Type:
Pet Sheet Extruder Machine
Suitable Material:
PET
Width:
800mm 1000mm 1200mm 1500mm
Thickness:
0.2-2mm
Sheet Structure:
Single Layer / Double Layer / Three Layer / Multi-layer
Screw Design:
Single Screw / Parallel Twin Screw
Output:
300-1000kg/h
Motor:
Siemens / OMEC / WEG
Main PLC:
Siemens
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
Highlight:

Double Layer Pet Sheet Extruder Machine

,

Pet Sheet Extruder Machine 600KG H

,

pet sheet extrusion line

Product Description

PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H



1. Introduction of PET  decorative sheet production machine

(1) Single screw production line for PET decorative sheet production machine: single screw production machine for PETG decorative sheet is the most mature project with the most stable production at present. Generally, single extruder production machine or twin-extruder production line is adopted and Gwell uses the latest technology to increase the general efficiency by 30%.The transparency of PET sheet can reach optical level.

However, this model has very high requirements for raw material processing, and the PET raw material needs to be crystallized and dried. This can ensure that the produced PET decorative sheet production machine has no crystal points, whiteness, and poor transparency.

The main features of PET high transparency sheet production machine: impact resistance, excellent processability, good chemical resistance, and good insulation.

PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H 0

(2) PET three-layer decorative sheet production line or GAG decorative sheet production machine: APET, PETG three-layer sheet production machine is improved from PET sheet production machine. According to different types of extruders, there are different raw material processing methods. This machine uses two or more extruders. Either a single-screw extruder or a twin-screw extruder can be used to produce three-layer PET sheets.

GAG sheet is the most commonly used PET three-layer decorative sheet, which is composed of PETG+APET+PETG through an extruder, distributor and die. It is widely used in furniture and decoration materials.

PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H 1



China Gwell Company’s business purpose: to design and manufacture the most professional equipment to meet customer needs with the most scientific extrusion theory. We specialize in plastic sheet, film and sheet extrusion line, compounding, pelletizing machine, twin screw extruder, single screw extruder, two-stage extruder and other equipment design and manufacturing. We have senior scientific research staff of extrusion units and advanced processing equipment.

Gwell PET sheet extrusion production line is company's strategic continuous improvement model. As to this equipment, company adopts the special sales model to ensure the first market share, the lowest price for the same parameter configuration, and the first echelon of PET industry for continuous technology upgrading. The raw materials can be APET, PETG, RPET, etc.



PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H 2



2. Specification of PET decorative sheet production machine

Type of machine GWP75 Twin screw+GWS65 Single screw GWP85 Twin screw+GWP52 twin screw GWP95 Twin screw+GWP65Twin screw
Width of product 800mm - 1000mm 800mm - 1200mm 1000mm - 1500mm
Thickness of product 0.15mm - 2mm 0.15mm - 2mm 0.15mm - 2mm
Output 300KG/H - 450KG/H 500KG/H - 600KG/H 800KG/H - 900KG/H





Type of machine GWS90 single screw GWS120 single screw GWS150 single screw
Width of product 600mm - 800mm 800mm - 1200mm 1000mm - 1500mm
Thickness of product 0.15mm - 2mm 0.15mm - 2mm 0.15mm - 2mm
Output 150KG/H - 200KG/H 300KG/H - 400KG/H 400KG/H - 500KG/H





PETG Decorative Sheet Production Machine APET Sheet Extrusion Line 600KG H 3
