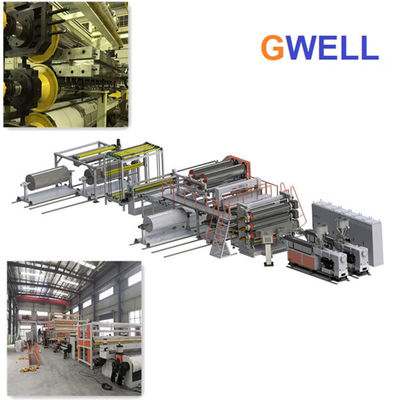

CPE Waterproof Film Extrusion Line CPE Water Proof Sheet Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWC92 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 90 days after all the technical requirements are confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per year |
|
Detail Information |
|||
| Product Name: | CPE Waterproof Film Extrusion Line CPE Water Proof Sheet Making Machine | Machine Type: | Plastic Waterproof Membrane Extrusion Line |
|---|---|---|---|
| Brand: | GWELL | Suitable Material: | PVC CPE |
| Width: | 2000mm | Thickness: | 1-3mm |
| Screw Design: | Conical Twin Screw | Country Of Origin: | China |
| Warranty: | One Year | After-sales Service: | Installation And Machine Debug |
| High Light: | CPE Waterproof Film Extrusion line 15m Min,Waterproof Film Extrusion line 15m min,Waterproofing Membrane Sheet Extrusion 15m Min |
||
Product Description
CPE Waterproof Film Extrusion Line CPE Water Proof Sheet Making Machine
1. Features of CPE waterproof membrane extrusion line
(1) Excellent aging resistance and long service life;
(2) It has a certain heat preservation and anti-corrosion effect
(3) High tensile strength, good low temperature flexibility, strong impermeability, small expansion coefficient, low heating effect, strong deformation adaptability, large friction coefficient, can be used in conjunction with a variety of adhesives, and good bonding effect;
(4) It can be constructed directly on the freshly poured concrete, effectively shortening the construction period and saving construction costs
2. Specification of CPE waterproof membrane extrusion line:
| Type of extruder | Conical twin-screw extruder GWCP92/GWCP80 | Conical twin-screw extruder GWCP110/GWCP110 |
| Raw material | PVC, CPE | PVC, CPE |
| Width of product | 2000mm | 2000mm |
| Thickness of product | 1mm-3mm | 1mm-3mm |
| Output | 850kg/h-1000kg/h | 1000kg/h-1500kg/h |
| Line speed | 12m/min | 15m/min |
