Building TPO Waterproofing Membrane Production Line Equipment

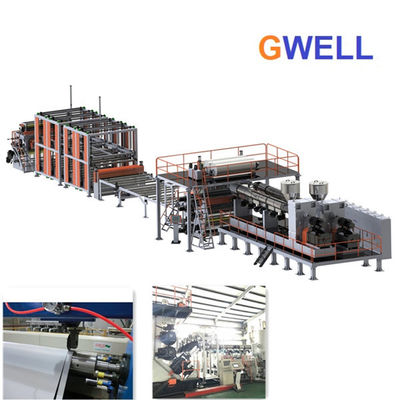

Building TPO Waterproofing Membrane Production Line Equipment

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days for production cycle
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWP75 GWS130 GWS95
Product Name:
TPO Waterproofing Sheet Extrusion Equipment
Machine Type:
Plastic Waterproof Membrane Extrusion Line
Brand:
GWELL
Suitable Material:
TPO
Width:
2100mm
Thickness:
1-3mm
Screw Design:
Single Screw / Parallel Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days for production cycle
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
High Light:

TPO Waterproofing Membrane Production Line

,

Building Waterproofing Membrane Production Line

,

Membrane Sheet Film Extrusion Process

Product Description

TPO Waterproofing Sheet Extrusion Equipment Used For Building Waterproof Project



1. Introduce of TPO waterproof coil production line

(1) Gwell TPO waterproof coil production line is a special TPO machine developed by our company based on many years' production experience of our customers. The design concept and technical content are of guiding significance to the industry. The production is stable, with high output, low defect rate and easy operation. It can meet the production of homogeneous coil (H type), fiber backing coil (L type), fabric reinforced coil (P type). The production line is simple in structure and easy to operate. Different equipment components can be configured according to customers' requirements to produce single-layer and multi-layer composite products. It can also be added winding device, and produce internal enhancement products or surface composite non-woven products.

Building TPO Waterproofing Membrane Production Line Equipment 0



(2) TPO polymer self-adhesive waterproof membrane equipment. This equipment has automatic integrated design, man-machine interface control setting of the whole machine, computer automatic tracking control and many other functions. The whole production process data can be recorded and statistics, and the process can be accurately controlled, which effectively improve the production efficiency and quality of the product.

The automatic batching system adopts PLC control technology, fully automatic feeding and batching, the whole process is closed loop and automatically adding raw materials, so that the ratio of raw materials is more accurate, and the consistency of the same product formula is ensured, and the quality is more stable.

Building TPO Waterproofing Membrane Production Line Equipment 1


2. Introduce of TPO waterproof coil

TPO waterproof coil production line is a new waterproof coil made of thermoplastic polyolefin with antioxidant, anti-aging agent, softener, etc., with polyurethane mesh reinforcement layer in the middle and fabric fiber and aluminum film on the surface. TPO waterproof coil has excellent weather resistance and flexibility. Mainly used for all kinds of roofing, basement, tunnel and other building waterproof engineering.

Building TPO Waterproofing Membrane Production Line Equipment 2



3. Specification:

Type of extruder Parallel twin-screw extruder GWP75/GWP75 Single screw extruder GWS130/GWS130 Parallel twin-screw extruder GWP95/GWP95
Structure of product TPO; TPO-NET-TPO; NET-TPO-NET TPO; TPO-NET-TPO; NET-TPO-NET TPO; TPO-NET-TPO; NET-TPO-NET
Width of product 2100mm 2100mm 2100mm
Thickness of product 1mm-3mm 1mm-3mm 1mm-3mm
Output 1000kg/h 1000kg/h 1000kg/h
Line speed 10m/min 10m/min 10m/min



Building TPO Waterproofing Membrane Production Line Equipment 3



Gwell plastic transparent sheet unit production line absorbs and digest western country advanced extrusion technology. And its main parts choose from all over the world (such as screw, barrel, roller, etc.). The energy consumption of its complete sets of equipment , intelligent, automation, safety standard, technology standard, etc., have been at or near the world standard of the product. This series of products has a number of inventions and utility model patents so that it replaces imported equipment, and has a cost-effective advantage. The high-level transparent plate products are widely used in optics, home appliances, construction engineering, decoration, furniture, advertising, handicrafts and other industries and civil industries. Its quality has reached the world's product performance, and we have a matching team of experts and process engineers to help users debug, produce high-quality products.



Building TPO Waterproofing Membrane Production Line Equipment 4

Building TPO Waterproofing Membrane Production Line Equipment 5





Building TPO Waterproofing Membrane Production Line Equipment 6

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
