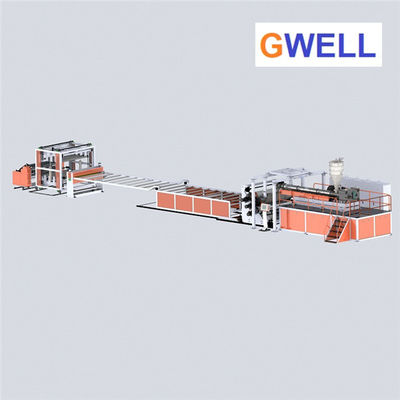

0.4mm Transparent Soft Pvc Sheet Manufacturing Machine Pvc Single Screw Extruder
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per 90 days |
|
Detail Information |
|||
| Product Name: | PVC Transparent Soft Sheet Production Equipment,Low Energy Consumption And High Efficiency | Machine Type: | PVC Transparent Sheet Extrusion Line |
|---|---|---|---|
| Brand: | GWELL | Suitable Material: | PVC |
| Width: | 600-2000mm | Thickness: | 0.4-10 Mm |
| Screw Design: | Single Screw | Country Of Origin: | China |
| Warranty: | One Year | After-sales Service: | Installation And Machine Debug |
| High Light: | 0.4mm Soft Pvc Sheet Manufacturing Machine,Pvc Sheet Extrusion Machines Single Screw,0.4mm Pvc Sheet Making Machine |
||
Product Description
PVC Transparent Soft Sheet Production Equipment,Low Energy Consumption And High Efficiency
1. PVC Transparent soft curtain production line
Gwell Transparent PVC soft curtain production line adopts single screw extruder with PVC granules. The unique screw structure, combined with the Gwell vacuum hopper, enables the product to achieve highly transparent effect, and the product will not harden in the cold temperature of 30 degrees below zero. Auxiliary design adhering to the principle of multi-purpose machine, in the case of no need to make any changes to the equipment, can produce three different patterns of PVC curtain without shutting down the machine.
2. Features of PVC Transparent soft curtain
(1) smooth surface, no cracks, no bubbles, uniform color, heat resistance, cold resistance, aging resistance, stress resistance, strong acid and alkali resistance, good light transmission. Long service life. To a certain extent, it can replace the use of glass. Especially soft glass anti - impact, anti - pull characteristics, not only to ensure its long service life, more important is not to cause harm to the human body. Its winter is warm and summer is cool and qualitative soft characteristic, make desktop office personnel works particularly comfortable.
(2) anti-light, no deformation, no breaking, no hardness, high elasticity.
(3) soft and easy to write.
(4) heat 100℃, cold -30℃, strong acid, alkali, pressure resistance, help improve the efficiency of desktop work, for the restaurant can reduce the cleaning cost, add elegant and beautiful restaurant
(5) one method extrusion molding, products do not stratify, low temperature environment is still soft.
(6) PVC soft boards are available in brown, green, white, gray and other colors. Wide range of applications. Performance characteristics: soft and cold-resistant, abrasion-resistant, acid-resistant, alkali-resistant, corrosion-resistant, tear-resistant, excellent weldability, and physical properties better than other roll materials such as rubber. Mainly used in chemical industry, electroplating, electrolytic cell lining, insulating cushion, train, automobile interior decoration and auxiliary materials.
3. Specification:
| Type of extruder | Single screw extruder (with Gwell patented vacuum hopper) |
| Width of Products | 600mm-3000mm |
| Thickness of Products | 0.4mm-10mm |
| Output | 150kg/h-1000kg/h |
