PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line

PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS120+GWS75 GWP75 GWP85 GWP95
Product Name:
PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line
Machine Type:
Plastic Hollow Section Board Extrusion Line
Brand:
GWELL
Suitable Material:
PP+calcium Carbonate
Width:
915mm 1220mm
Thickness:
12-21mm
Screw Design:
Single Screw / Parallel Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
Highlight:

PP PC PE hollow sheet extrusion line

,

PP PC Hollow Profile Sheet Extrusion Line

,

PP Hollow Profile Sheet Extrusion machine

Product Description

PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line



Introduce of PE hollow profile sheet machine

The process is saved and the construction efficiency is improved. The two surfaces (smooth surface or pattern surface) of the PP hollow plastic building template machine have different using effects. For example, the surface of the rammed body is smooth and clean after the formwork is removed from the concrete pouring, which meets the requirements of finishing and decorative without secondary plastering. Save materials and time, reduce cleaning and maintenance costs, and ensure the quality of the concrete after forming stable and save construction period. If the patterned surface is used, it is beneficial to combine with the plaster layer. In particular, the use of patterned surface on bridge piers not only meets the requirements of finishing and decorative clear water, but also because the patterned surface has a special light diffuse reflection function, it avoids the strong light reflection from affecting the driver's line of sight and plays a safety protection role.

In short, plastic formwork has the common use of conventional building formwork and more characteristics than conventional formwork. Plastic formwork will become an ideal product for global construction in the 21st century to replace wood with plastic, steel with plastic, and bamboo with plastic.

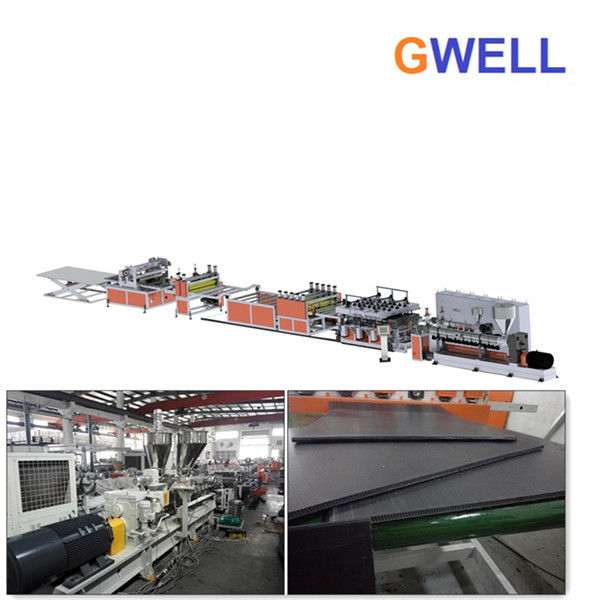

Gwell Machinery Company is committed to manufacturing PP hollow building template machine. Gwell absorbed the domestic advanced extrusion technology and independent innovation, and successfully developed the PP hollow building template machine.The production line consists of two single-screw extruders (or one single-screw extruder and one parallel twin-screw extruder) and hydraulic screen changer, mold, calibration machine, primary tractor, annealing furnace, cooling box, Composition of secondary tractor, cross-cutting machine and conveyor. We provide a complete set of production equipment for domestic and foreign companies. The structure of the template is changed from the original O-shaped hollow structure to the m-shaped, V-shaped, N-shaped, well-shaped, and finally fixed to the well-shaped. It has been accepted by the market in terms of material consumption and structural performance. Its products have many advantages such as smooth surface, small dimensional error, nailability, planing, corrosion resistance, flame retardant and so on. Compared with traditional formwork, building formwork has the following characteristics.



PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line 0





PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line 1



Data of PE hollow profile sheet machine

Differences among Board
Property Plastic template Bamboo template Wood template
Turnover 40-100 times 6-8 times 3-6 times
Abrasive resistance Yes No No
Corrosion resistance Great bad bad
Toughness Can be bent into arch formwork No No
Impact strength Great bad bad
Drop test No broken Easy to break Easy to break
After water was absorbed No deformation Easy to deformation Easy to deformation
Waste disposal Can be recycled No No
Environment protection No pollution pollution pollution







PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line 2



Type of extruder

Single screw extruder GWS120/GWS65

Twin screw extruder GWP75/single screw extruder GWS65

Single screw extruder GWS120

Twin screw extruder GWP75

Structure of product

Three layers

A/B/A

Three layers

A/B/A

Single layer

A

Single layer

A

Width of Product

915mm-1830mm

915mm-1830mm

915mm-1830mm

915mm-1830mm

Thickness of product

12mm, 15mm, 18mm, 21mm

12mm, 15mm, 18mm, 21mm

12mm, 15mm, 18mm, 21mm

12mm, 15mm, 18mm, 21mm

Output

450kg/h

450kg/h

350kg/h

350kg/h





PE Hollow Profile Sheet Machine PP Hollow Build Board Production Line 3
