| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90-100 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |

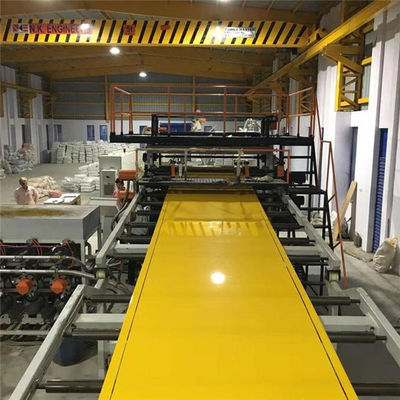

PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder
1. Introduction of PC Opaque Plate Making Machine
GWELL's PC Opaque Plate Making Machine can produce multi-purpose PC sheets with a thickness of 0.15mm-2mm. We use advanced machine manufacturing technology to make the machine run more smoothly and efficiently and reduce the failure rate. Our PC Opaque Plate Making Machine can also produce PP and PE sheets. It can achieve the purpose of one machine with multiple functions.PC Opaque Plate Making Machine
2. Model of PC Opaque Plate Making Machine:
| Type of extruder | Single screw extruder | Parallel twin screw extruder |
| Max width of product | 800mm--1300mm | |
| Thickness of product | 0.15mm-2mm | 0.2mm-2mm |
| Output | 150kg/h-450kg/h |
200kg/h-600kg/h |

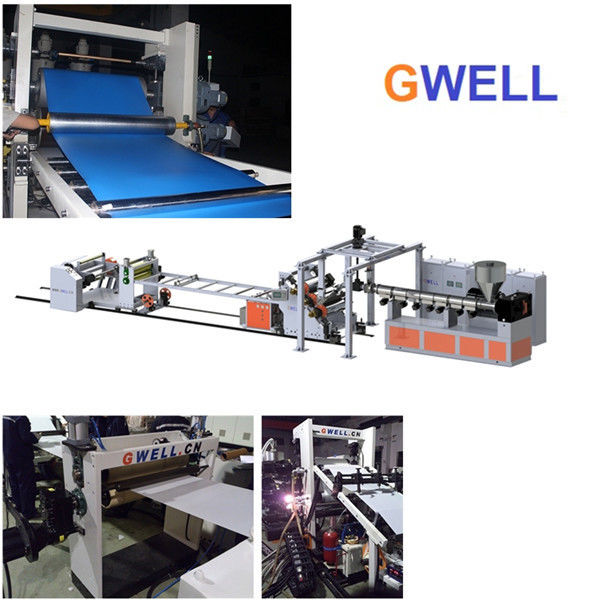

3. The PC Opaque Plate Making Machine consists of the following parts
(1) Vacuum feeder: transport raw materials to the extruder
(2) Single screw extruder: plasticize raw materials and extrude molten raw materials
(3) Mold: according to customer requirements of the thickness range
(4) Three-roller calender: The diameter and length of the roller can be designed and manufactured according to customer requirements
(5) Cooling brackets: it is a cooling and conveying device
(6) Traction machine: use double pairs of rollers to haul the sheet
(7) Cutting unit: the role of cutting sheets
(8) Other auxiliary machines: chiller, air compressor, etc
Video
|
|
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90-100 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |
PC Opaque Plate Making Machine PC Heat Resistance Sheet Extrusion Line Single Screw Extruder
1. Introduction of PC Opaque Plate Making Machine
GWELL's PC Opaque Plate Making Machine can produce multi-purpose PC sheets with a thickness of 0.15mm-2mm. We use advanced machine manufacturing technology to make the machine run more smoothly and efficiently and reduce the failure rate. Our PC Opaque Plate Making Machine can also produce PP and PE sheets. It can achieve the purpose of one machine with multiple functions.PC Opaque Plate Making Machine
2. Model of PC Opaque Plate Making Machine:
| Type of extruder | Single screw extruder | Parallel twin screw extruder |
| Max width of product | 800mm--1300mm | |
| Thickness of product | 0.15mm-2mm | 0.2mm-2mm |
| Output | 150kg/h-450kg/h |
200kg/h-600kg/h |
3. The PC Opaque Plate Making Machine consists of the following parts
(1) Vacuum feeder: transport raw materials to the extruder
(2) Single screw extruder: plasticize raw materials and extrude molten raw materials
(3) Mold: according to customer requirements of the thickness range
(4) Three-roller calender: The diameter and length of the roller can be designed and manufactured according to customer requirements
(5) Cooling brackets: it is a cooling and conveying device
(6) Traction machine: use double pairs of rollers to haul the sheet
(7) Cutting unit: the role of cutting sheets
(8) Other auxiliary machines: chiller, air compressor, etc
