PC PMMA PET GPPS MS Plastic Sheet Plate Film Electrical Control System
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWS90/GWS120/GWS150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per 90 days |
|
Detail Information |
|||
| Product Name: | Electrical Control System , For Plastic Sheet , Plate And Film Production Machines | Machine Type: | Plastic Sheet Extrusion Line |
|---|---|---|---|
| Brand: | GWELL | Suitable Material: | PC PMMA PET GPPS MS |
| Width: | 600-1220mm | Thickness: | 0.125-3mm |
| Sheet Structure: | Single Layer/double Layer/three Layer/multi-layer | Screw Design: | Single Screw/Twin Screw |
| Country Of Origin: | China | Warranty: | Guarantee Period |
| After-sales Service: | Installation And Machine Commissioning | ||
| High Light: | GPPS Plastic Sheet Electrical Control System,PMMA Plastic Sheet Electrical Control System,GWELL Electrical Control System |
||
Product Description

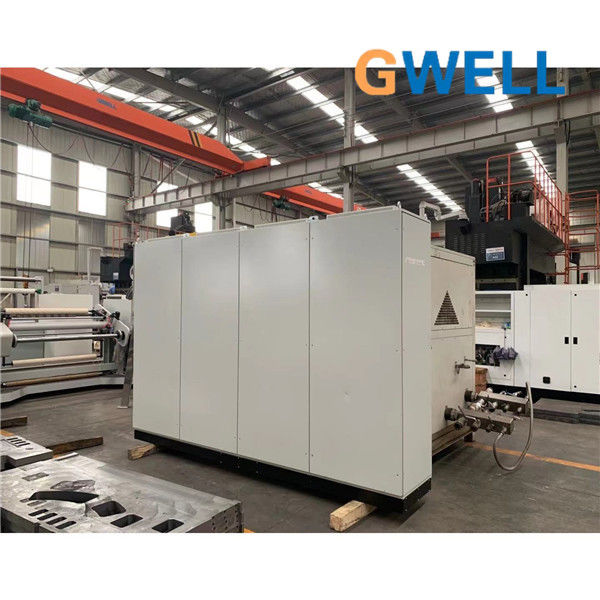

Electrical Control System , For Plastic Sheet , Plate And Film Production Machines
1. Introduction of our company's electrical system components
Our company's electrical system mainly consists of the following three types: (1) the electrical control system of the cast film production machine (2) the electrical control system of the sheet production machine (3) the electrical control system of the sheet production machine. The system consists of the following components: operation cabinet, operation panel, PLC, temperature control meter, frequency converter, three-roller and tractor controller, relay, circuit breaker, air switch, indicator light and other components.
2. The function of our company's electrical control system
(1) Automatic control function. The volume of high-voltage and high-current switchgear is very large. Generally, operating systems are used to control opening and closing. Especially when the device fails, the switch needs to automatically cut off the circuit, and there must be a set of automatically controlled electrical operation equipment. Automatic control of power supply equipment. To
(2) Protection function. Electrical equipment and lines will fail during operation, and the current (or voltage) will exceed the allowable working range and limits of the equipment and lines. This requires a set of detection of these fault signals and automatic adjustment of the equipment and lines (disconnect, Switching, etc.) protection equipment. To
(3) Monitoring function. Electricity is invisible to the eyes. Whether a device is powered or powered off is indistinguishable from the outside. This requires setting up various audio-visual signals, such as lights and sounds, to conduct electrical monitoring of the primary device. To
(4) Measurement function. Light and sound signals can only qualitatively indicate the working status of the equipment (powered or powered off). If you want to know the working status of electrical equipment quantitatively, you also need various instrument measuring equipment to measure various parameters of the circuit, such as voltage , Current, frequency and power etc.
3. Overview of the electrical control system
The so-called electrical control system refers to a combination of several electrical components to realize the control of one or some objects, so as to ensure the safe and reliable operation of the controlled equipment. The main functions of the electrical control system are: automatic control, protection, monitoring and measurement. Its composition mainly has three parts: input part (such as sensors, switches, buttons, etc.), logic part (such as relays, electric shocks, etc.) and execution part (such as electromagnetic coils, indicator lights, etc.).
Gwell machiney company absorbs and digests the experience and advanced technology from other countries to improve the machine design and processing technology. The main components used on the production line are all qualified and famous brand, like Siemens, ABB, JC-TIMES. The energy consumption of its complete sets of equipment , intelligent, automation, safety standard, technology standard, etc., have been at or near the world standard of the product. Gwell has developped for over ten years since 2010. We have accumulated a lot of experience of electrical system designing since the using conditions are different in other countries.
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
