ASA polymer film casting equipment Crease Weather Resistance Uniformity Extensibility
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS|
|Delivery Time:||90-100 days after all the technical requirements are confirmed|
|Payment Terms:||L/C, T/T|
|Supply Ability:||200 sets/yr|
|Product Name:||ASA Cast Film Production Machine||Machine Type:||Plastic Cast Film Extrusion Line|
|Screw Design:||Single Screw||Country Of Origin:||China|
|Warranty:||One Year||After-sales Service:||Installation And Machine Debug|
ASA polymer film casting equipment,
polymer film solution casting,
cast film extrusion machine for sale

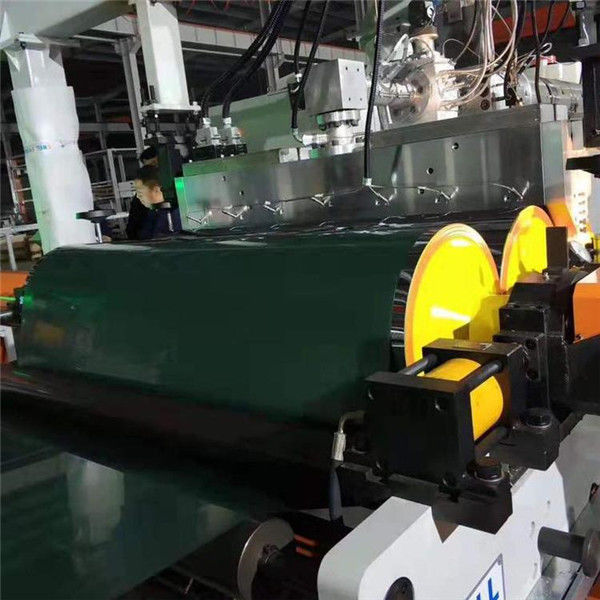

ASA Cast Film Production Machine Good Weather Resistance Uniformity Extensibility And Crease Resistance
1.Introduction of ASA film
ASA is a copolymerization of styrene, acrylonitrile and acrylic rubber. Technically speaking, ASA not only maintains the main characteristics of ABS, but also combines the advantages of acrylic weather resistance, so that the application of the product can be extended to outdoor use. ASA film products are made of high content of ASA rubber powder raw materials. The products have completely passed the 12,000-hour weather resistance test. The color retention performance is many times higher than that of the current co-extruded materials on the market. The uniformity of ASA film is higher than that of co-extruded material, there is no color difference of thin spots, and no waste of scraps. Therefore, the ASA cast film has become a development trend at this stage.
2. Application of ASA film
Because ASA film has good weather resistance, uniformity, extensibility and crease resistance, it is widely used in roof color steel tiles, resin tiles and plastic sheets, sheet surfaces, outdoor plastic lounge chairs, outdoor lamps and lanterns surface coating and advertising board, decorative board.
3. The equipment features of the ASA cast film production line produced by our company
(1) The whole set of equipment adopts PLC, closed-loop control so it can realize one-key speed increase and is easy to operate.
(2) The special screw design of the extruder ensures that the melting of the raw plastic material, the color of the product is uniform, and the extrusion volume is high
(3) The full-automatic mold combined with the thickness gauge can more effectively fine-tune the melt thickness deviation in the transverse width of the die, and the thickness uniformity is guaranteed to be ±10 um.
(4) The casting roll adopts the method of integral machining of the inner runner to ensure the temperature control within ±1 degree, and the rolling surface control accuracy within± 10um to ensure more accurate casting film thickness.
(5) The tension sensor and control system are used to ensure the tension control is ± 10um.
(6) A complete set of servo motors and servo controllers make the equipment run more accurately.
(7) The fully automatic cutting and rewinding machine has two functions: contact rewinding and gap rewinding. The winding tape has tension control, the adjustment range is 5-200N/M.
4. Machine configuration:
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
