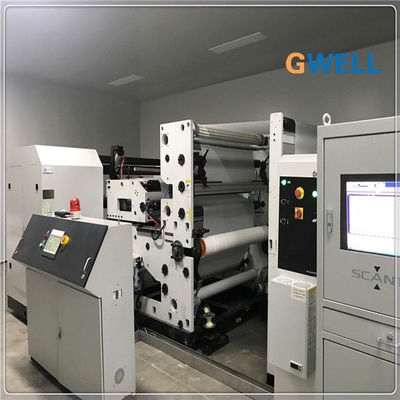

1500mm ETFE Cast Film Extrusion Line

1500mm ETFE Cast Film Extrusion Line

Product Details:

Place of Origin: China
Brand Name: GWELL
Certification: CE
Model Number: GWS65/GWS90

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1 set per 90 days
Get Best Price Contact Now

Detail Information

Product Name: ETFE Cast Film Production Machine,Low Energy Consumption And High Efficiency Machine Type: Plastic Waterproof Membrane Extrusion Line
Brand: GWELL Suitable Material: ETFE
Width: 1000-1500mm Thickness: 0.08-0.2mm
Screw Design: Single Screw Country Of Origin: China
Warranty: One Year After-sales Service: Installation And Machine Debug
High Light:

etfe extrusion


1500mm Cast Film Extrusion Line


polymer film casting equipment

Product Description

1500mm ETFE Cast Film Extrusion Line 0

ETFE Cast Film Production Machine,Low Energy Consumption And High Efficiency


1. Introduction of ETFE cast film production line

ETFE film is one of the fluorine-containing plastics. It has good light transmittance, self-cleaning properties, insulation properties, damp heat resistance and aging resistance and is widely used in various fields. Because ETFE fluoroplastic film contains fluorine elements, it is prone to thermal decomposition during thermal processing, which will corrode processing equipment and molds. Therefore, processing equipment and processes are different from ordinary thermoplastics. This production line adopts specially designed equipment and process technology, and successfully developed a cast extrusion line for fluorine plastic film such as ETFE.


2. Features of the production line

(1) The extruder made of special high-temperature and corrosion-resistant steel material realizes the stable extrusion of fluoroplastics;

(2) Technically cooperate with domestic universities and scientific research institutions to professionally design screw structure and die structure according to the particularity of fluorine materials, and cooperate

Special processing techniques such as forming and winding can realize the rationalization, industrialization and large-scale production of fluoroplastic products;

(3) The whole machine configuration, design is practical and reasonable, PLC touch screen control, whole machine chain control, convenient and safe.


3. Main uses of ETFE film products

(1) The thickness of ETFE film is usually less than 0.20mm, which is a transparent film. ETFE film can be used not only as a film for construction and agriculture, but also for automotive windshield film, antifouling inner and outer packaging materials, battery separators, adhesive containers, conveyor belts in the food industry, solar receivers, flexible printed circuit boards, and computers wires, medical packaging films, etc.


model   GWS65 GWS90
Raw materials   ETFE  ETFE
Product width    1000mm--1500mm
Product thickness    0.08-0.2mm
Output   80-120kg/h 100-200kg/h


1500mm ETFE Cast Film Extrusion Line 11500mm ETFE Cast Film Extrusion Line 2


Gwell plastic transparent sheet unit production line absorbs and digest western country advanced extrusion technology. And its main parts choose from all over the world (such as screw, barrel, roller, etc.). The energy consumption of its complete sets of equipment , intelligent, automation, safety standard, technology standard, etc., have been at or near the world standard of the product. This series of products has a number of inventions and utility model patents so that it replaces imported equipment, and has a cost-effective advantage. The high-level transparent plate products are widely used in optics, home appliances, construction engineering, decoration, furniture, advertising, handicrafts and other industries and civil industries. Its quality has reached the world's product performance, and we have a matching team of experts and process engineers to help users debug, produce high-quality products.


1500mm ETFE Cast Film Extrusion Line 3

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.


1500mm ETFE Cast Film Extrusion Line 4
