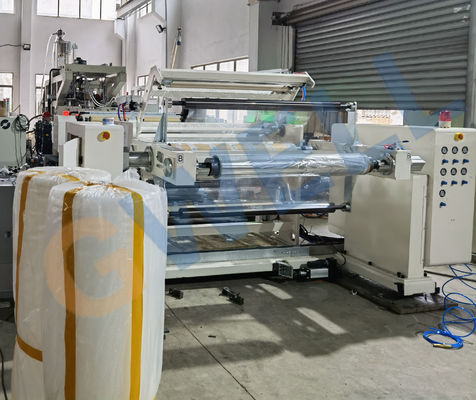

1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage

1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the technical documents are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS65
Product Name:
ETFE Cast Film Production Machine
Machine Type:
Cast Film Extrusion Line
Brand:
GWELL
Suitable Material:
ETFE
Width:
1000-1600mm
Thickness:
0.025-0.2mm
Screw Design:
Single Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the technical documents are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
Highlight:

ETFE Film Extrusion Production Line

,

1220mm Cast Film Extrusion Line

,

PV Solar Panel Cast Film Extruder

Product Description

1220mm ETFE film Extrusion Production Line For PV Solar Panel Usage



1. Introduction of company

China Gwell Machinery Company is a professional manufacturer of plastic film, sheet and board extrusion line. We are devoted to digging into flat sheet extruding and forming. We have been in this industry since 2010. Now we have two production bases under using and two new production bases under construction. The total area is covering about 150000sqm. The most popular machine models we make are PET sheet machines, EVA solar film machines, PVC sheet machines and ETFE film machines. If you are interested, please feel free to contact us.

1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 0

2. Introduction of ETFE cast film production line

ETFE film belongs to one kind of the fluorine-containing plastic materials. It has the features of fine light transmittance, self-cleaning function, insulation function, damp heat resistance and aging resistance and the film is applied in many different industries. Since the ETFE fluoroplastic film contains fluorine elements, it is prone to thermal decomposition during heating processing, which will corrode processing equipment and molds. Therefore, its processing device and process technoligy are different from common materials'. This production line adopts specially designed equipment and process technology, and successfully developed a cast extrusion line for fluorine plastic film such as ETFE.

1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 1

3. Features of the production line

(1) The extruder made of special high-temperature and corrosion-resistant steel material realizes the stable extrusion of fluoroplastics;

(2) Technically cooperate with domestic universities and scientific research institutions to professionally design screw structure and die structure according to the particularity of fluorine materials, and cooperate

Special processing techniques such as forming and winding can realize the rationalization, industrialization and large-scale production of fluoroplastic products;

(3) The whole machine configuration, design is practical and reasonable, PLC touch screen control, whole machine chain control, convenient and safe.

1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 2

4. Main uses of ETFE film products

(1) The thickness of ETFE film is usually less than 0.20mm, which is a transparent film. ETFE film can be used not only as a film for construction and agriculture, but also for automotive windshield film, antifouling inner and outer packaging materials, battery separators, adhesive containers, conveyor belts in the food industry, solar receivers, flexible printed circuit boards, and computers wires, medical packaging films, etc.



model   GWS65 GWS90
Raw materials   ETFE  ETFE
Product width    1000mm--1500mm
Product thickness    0.08-0.2mm
Output   80-120kg/h 100-200kg/h



1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 3

1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 41220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 5





1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 6

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.



1220mm ETFE Film Extrusion Production Line For PV Solar Panel Usage 7
