| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical information is confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/yr |
EVA Film Extruder And POE Film Machine Manufacturer Solar Encapsulation Film Production Machine
1. EVA pv solar film machine production procedure
Renewable energy has get more and more concern in the world. The solar energy develops rapidly these years. Here we are going to do a brief introduction about our EVA/POE solar film machine and the production process.
China Gwell Machinery Company is a professional and experienced manufacturer of PV solar film machines. We have solar EVA film machine and solar POE film machine. We have been in this industry since 2010. After ten year's development, Gwell is the biggest Chinese manufacturer of EVA/POE solar film productions.
The production process of EVA POE solar film machine:
(1)Pre-mix the material(formula)
(2)Use vacuum feeder loading the material into the extruder
(3)Heat the extruder to melt the material

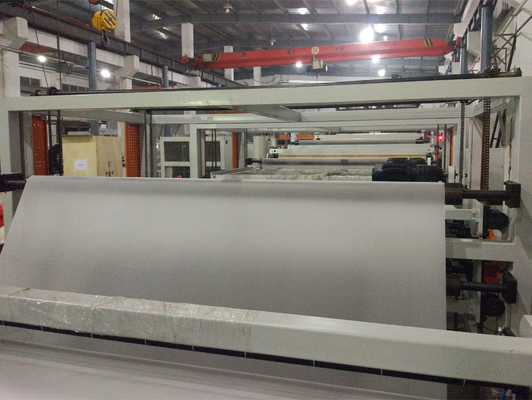

(4)Material flows out of the mold and onto the cooling roller
(5)Calender rotates to cool and shape the EVA/POE solar film
(6)Film transfer to the cooling bracket and get edge trimmed
(7)Use winder to wind the final film into rolls
2. Specification of EVA solar film machine:
| Extruder type | GWS160 | GWS160 | GWS180 | GWS180 |
| raw material | EVA ,POE | EVA ,POE | EVA ,POE | EVA,POE |
| Product width | 2200mm, 2400mm, 2600mm | |||
| Product thickness | 0.2mm -1mm | 0.2mm -1mm | 0.2mm -1mm | 0.2mm -1mm |
| Maximum linear speed | 10m/min ,12m/min,15m/mn | |||
| Extruder type | Co-extrusion GWS160+GWS160 | Co-extrusion GWS180+GWS160 | Co-extrusion GWS180+GWS180 |
| raw material | EVA ,POE | EVA ,POE | EVA,POE |
| layers | A,A/B/A | ||
| Product width | 2400mm,2600mm | ||
| Product thickness | 0.2mm -1mm | 0.2mm -1mm | 0.2mm -1mm |
| Maximum linear speed | 15m/min, 16m/mn, 18m/min | ||
3. Mixing system of EVA/POE solar film production line
In order to produce qualified EVA/POE film, it requires formula. The formula contains different types of materials in different state. At this time, we can equip customers with whole set of mixing system, it contains a conical mixer and related feeders. And based on the different features of EVA material and POE material, the time for mixing the two materials are different. If you want to know more information, please contact us and we will share some more information and pictures for you.
4. China GWELL MACHINERY COMPANT
We are very experienced in making EVA/POE solar film production lines. There are many types of machine model which can meet different market demand. If you are planning to set up a factory and you are interested in this EVA/POE solar film machines, please feel free to click the contacts and get in touch with us. Thank you!
Video
Video
Video
Video
|
|
