0.5mm PV Encapsulation Eva Film Extrusion Line Used For Solar Panel

0.5mm PV Encapsulation Eva Film Extrusion Line Used For Solar Panel

Brand Name:	GWELL
Model Number:	GWS single screw
MOQ:	1 set
Price:	Negotiable
Delivery Time:	90 days after all the technical information is confirmed
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

0.5 Mm Solar EVA Film PV Encapsulation Film Production Line

Machine Type:

EVA Solar Film Extrusion Line

Brand:

GWELL

Suitable Material:

EVA/POE

Film Structure:

Single Layer/three Layer

Width:

980mm 1020mm 1350mm 2200mm 2400mm 2600mm

Cooling Method:

Water Cooling

Production Capacity:

300-700 Kg/h

Usage:

Encapsulation Layers On Solar Panel

Exporting:

Shanghai Yangshan Port By Sea

T-die:

Automatic Model, Manual Model

Thickness Control:

Closed Loop, Can Be Open Loop

Packaging Details:

STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS

Supply Ability:

200 sets/yr

Highlight:

0.5Mm Eva Film Extrusion Line

Solar Panel Eva Film Extrusion Line

PV Encapsulation Eva Film Extrusion Line

Product Description

0.5 mm Solar EVA Film PV Encapsulation Film Production Line Used For Solar Panel

1. Machine models of EVA solar film production machine

If you are interested in EVA/POE solar film production line, then you find the right company here. We are the biggiest EVA/POE solar film machine manufacturer in China. Since 2010, GWELL started to make EVA solar film machine. The first machine mode at that time had a lot of limits, especially the output and line speed. Now after 11 years development, GWELL has upgraded the machine models again and again according to customers' feedback and market demand. Now the most latest machine model can reach to 700-800kg/h output. And compared with those machines from Europeon countries, we have a better price. Therefore, if you got plan for this project, we are a really good choice for you, please feel free to contact us and know more information.

2. Specification of EVA Solar Film Producing Line:

Extruder type	GWS160	GWS160	GWS180	GWS180
raw material	EVA ,POE	EVA ,POE	EVA ,POE	EVA,POE
Product width	2200mm, 2400mm, 2600mm
Product thickness	0.2mm -1mm	0.2mm -1mm	0.2mm -1mm	0.2mm -1mm
Maximum linear speed	15m/mn

Extruder type	Co-extrusion GWS160+GWS160	Co-extrusion GWS180+GWS160	Co-extrusion GWS180+GWS180
raw material	EVA ,POE	EVA ,POE	EVA,POE
layers	A,A/B/A
Product width	2400mm,2600mm
Product thickness	0.2mm -1mm	0.2mm -1mm	0.2mm -1mm
Maximum linear speed	18m/min

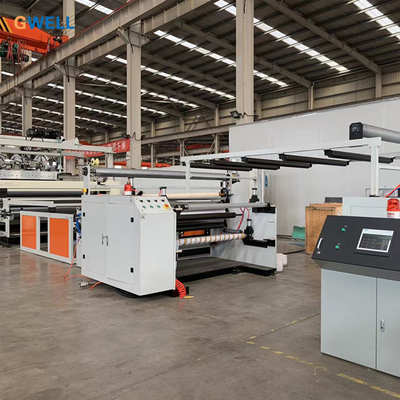

3. EVA/POE encapsulation film production line in factory

After customer devides to work with us, we can help design have to put the production line in customer's factory. Since the production line is long and high, the space must be considered in advance. We have single extrusion line, co-extrusion line, so the production line layout will be different, and space needed is different too.

0.5mm PV Encapsulation Eva Film Extrusion Line Used For Solar Panel 0

0.5mm PV Encapsulation Eva Film Extrusion Line Used For Solar Panel 1
