BIPV Modules PVB Solar Film Production Machine With Twin Screw

BIPV Modules PVB Solar Film Production Machine With Twin Screw

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: T/T, L/C
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS150/GWS85/GWS95
Product Name:
PVB Solar Film Production Machine Use Twin Screw Extruder For BIPV Modules
Machine Type:
Cast Film Extrusion Line
Brand:
Gwell
Suitable Material:
PVB SGP
Width:
1300-3200mm
Thickness:
0.2-1.52mm
Screw Design:
Single Screw/Double Screw
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
T/T, L/C
Supply Ability:
200 sets per year
High Light:

PVB Solar Film Production Machine

,

Twin Screw Film Production Machine

,

BIPV Modules Cast Film Extruder

Product Description

PVB Solar Film Production Machine Use Twin Screw Extruder For BIPV Modules



1. Machine model of SGP solar Film production machine

Machine model Single-screw GWS130 Twin-screw GWP85/GWP52 Twin-screw GWP95/GWP65
Suitable material PVB
Product structure A AB,ABA AB,ABA
Product width 1100mm - 1400mm 1400mm-2600mm 2400mm - 2800mm
Product thickness 0.2mm - 0.8mm
Output 350KG/H - 450KG/H 500KG/H - 600KG/H 650KG/H - 750KG/H



At present, the packaging forms of photovoltaic modules mainly include glass-EVA-backsheet and glass-PVB-glass. I will describe the characteristics of EVA and PVB encapsulation films respectively.

Photovoltaic industry is a rapidly developing emerging industry that converts solar energy into electric energy. Silicon solar cell modules are mainly used in large-scale grid-connected power generation, off-grid power stations, BIPV photovoltaic building integration, etc. The encapsulation films mainly include EVA and PVB.



2. Introduction

The PVB solar film production machine manufactured by GWELL adopts unique design and advanced manufacturing technology. Improve the stability and automation of the machine. The feeding system is connected with the extruder to realize online accurate proportioning of raw materials, so as to stabilize the quality of PVB solar film and reduce labor cost. The specially designed rollers are used to cool the PVB solar film production machine, reducing the stress caused by uneven cooling and heating, thereby ensuring the correct shrinkage rate.



3. Advantages of PVB solar film:

PVB film is mainly used for BIPV modules, the structure is steel glass (ultra white)-PVB-cell-PVB-tempered glass (normal).PVB solar film production machine.

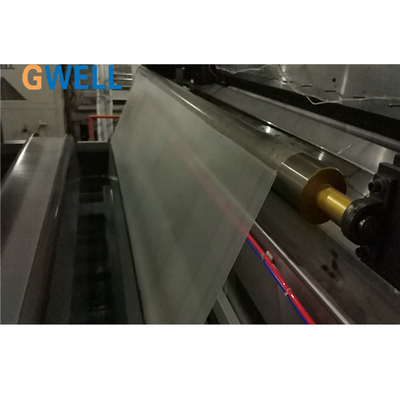

BIPV Modules PVB Solar Film Production Machine With Twin Screw 0



BIPV Modules PVB Solar Film Production Machine With Twin Screw 1
