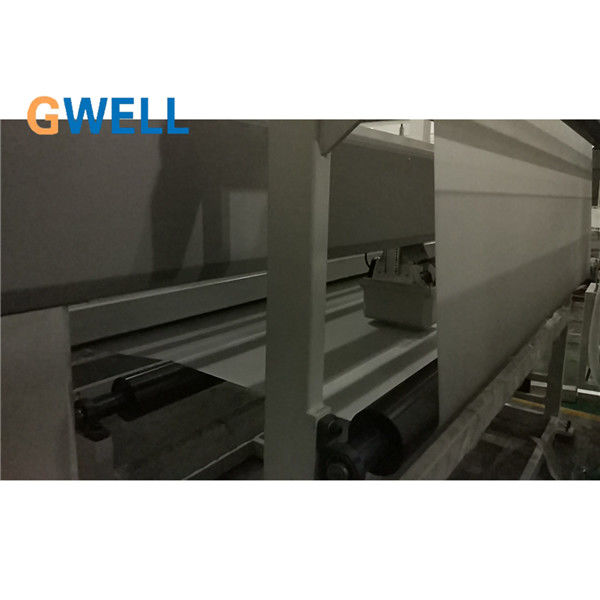

PVB Photovoltaic Film Making Machine Use Double Screw Extruder
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWS120/GWS150/GWS85/GWS95 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 90 days after all the technical requirements are confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets per year |
|
Detail Information |
|||
| Product Name: | PVB Photovoltaic Film Making Machine Use Double Screw Extruder Quality After-sales Service | Machine Type: | Cast Film Extrusion Line |
|---|---|---|---|
| Brand: | Gwell | Suitable Material: | SGP |
| Width: | 1300-3200mm | Thickness: | 0.2-1.52mm |
| Screw Design: | Single Screw/Double Screw | Warranty: | One Year |
| After-sales Service: | Installation And Machine Debug | ||
| High Light: | Photovoltaic Film Making Machine,Double Screw Cast Film Extrusion Line,PVB Film Making Machine |
||
Product Description
PVB Photovoltaic Film Making Machine Use Double Screw Extruder Quality After-sales Service
1. Comparison of PVB Photovoltaic film and EVA Photovoltaic film:
EVA is a thermosetting resin with cross-linking reaction; PVB is a thermoplastic resin with reproducibility and no cross-linking reaction;
The domestic glass curtain wall specification clearly puts forward the regulation of "application of PVB". BIPV photovoltaic modules can be made by PVB instead of EVA to achieve a longer service life. PVB Photovoltaic film making machine
PVB has strong adhesive properties, and its safety is higher than that of EVA Photovoltaic film;
EVA has many formulas, and the packaging process is not easy to control; the formula of PVB film is simple, the quality control is stable, and the shelf life is long;
PVB film has poor fluidity, which can prevent film overflow during processing.
At present, the packaging forms of photovoltaic modules mainly include glass-EVA-backsheet and glass-PVB-glass. I will describe the characteristics of EVA and PVB encapsulation films respectively.
Photovoltaic industry is a rapidly developing emerging industry that converts solar energy into electric energy. Silicon solar cell modules are mainly used in large-scale grid-connected power generation, off-grid power stations, BIPV photovoltaic building integration, etc. The encapsulation films mainly include EVA and PVB. PVB Photovoltaic film making machine
2. Machine model of PVB Photovoltaic film making machine
| Machine model | Single-screw GWS130 | Twin-screw GWP85/GWP52 | Twin-screw GWP95/GWP65 |
| Suitable material | PVB | ||
| Product structure | A | AB,ABA | AB,ABA |
| Product width | 1100mm - 1400mm | 1400mm-2600mm | 2400mm - 2800mm |
| Product thickness | 0.2mm - 0.8mm | ||
| Output | 350KG/H - 450KG/H | 500KG/H - 600KG/H | 650KG/H - 750KG/H |
