| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90-100 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/year |

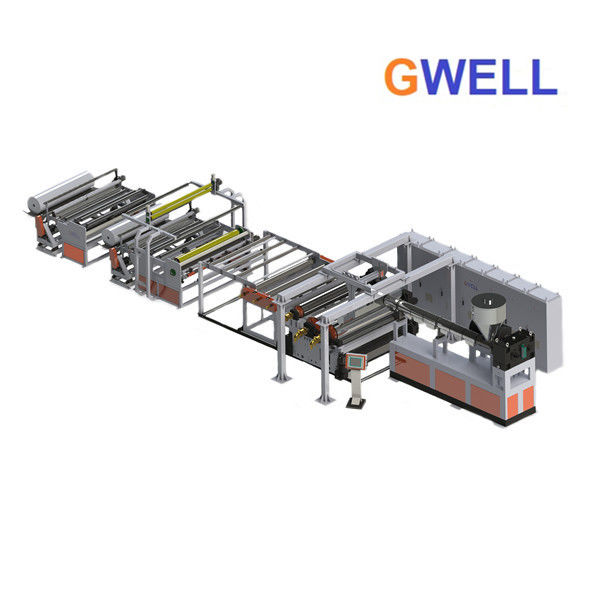

PP Polyethylene Hollow Profile Production Machine PP Plastic Building Template Extrusion Line
1. Machine configuration of PP Plastic Building Template Extrusion Line
| Type of extruder | GWP120 Single screw extruder | GWS120+GWS65 Single screw extruder | GWP85 Twin screw extruder +GWS65 Single screw extruder |
| Structure of product | Single layer | Three layers | Three layers |
| Width of product | 915mm - 1220mm | 915mm - 1220mm | 1220mm - 1830mm |
| Thickness of product | 12mm - 21mm | 12mm - 21mm | 12mm - 21mm |
| Output | 300KG/H - 400KG/H | 350KG/H - 450KG/H | 500KG/H - 600KG/H |
2. Board specification of PP Plastic Building Template Extrusion Line
| Board Specification | ||
| Thickness | Specification | Average weight |
| 12mm | 915mm*1830mm | 21kg |
| 15mm | 915mm*1830mm | 26kg |
| 12mm | 1220mm*2440mm | 37kg |
| 15mm | 1220mm*2440mm | 45kg |
3. Explain of of PP Plastic Building Template production machine
Gwell Machinery Company is committed to manufacturing PP hollow building template production machine. Gwell absorbed the domestic advanced extrusion technology and independent innovation, and successfully developed the PP hollow building template production machine. The production machine consists of two single-screw extruders (or one single-screw extruder and one parallel twin-screw extruder) and hydraulic screen changer, mold, calibration machine, primary tractor, annealing furnace, cooling box, Composition of secondary tractor, cross-cutting machine and conveyor. We provide a complete set of production machine for domestic and foreign companies. The structure of the template is changed from the original O-shaped hollow structure to the m-shaped, V-shaped, N-shaped, well-shaped, and finally fixed to the well-shaped. It has been accepted by the market in terms of material consumption and structural performance. Its products have many advantages such as smooth surface, small dimensional error, nailability, planing, corrosion resistance, flame retardant and so on. Compared with traditional formwork, building formwork has the following characteristics.
