EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel

EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel

Product Details:

Place of Origin: China origin
Brand Name: GWELL
Certification: CE
Model Number: GWS160/180/160+160/180+180

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time: 90 days after all the technical information is confirmed
Payment Terms: L/C, T/T
Supply Ability: 200 sets/yr
Get Best Price Contact Now

Detail Information

Product Name: EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel Machine Type: Cast Film Extrusion Line
Brand: GWELL Suitable Material: EVA Resin
Film Structure: One Layer Structure Width: 1000mm Or 2000mm(1000mm+1000mm)
Extruder Cooling Method: Cooled By Water Production Capacity: 400 Kg/h,500kg/h,700kg/h
Usage: Encapsulation Layers On Solar Module Screw L/D: 35:1
T-die: Automatic Model, Manual Model Winders: Automatic Winder, Manual Winder

Product Description

EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel



1. Introduction of EVA solar film production line

Based on the different application of EVA solar film, it requires the clients to produce EVA film in different gsm. EVA solar film production line made by GWELL can easily be adjusted to control and produce EVA solar film in different gsm. There are some common gsm that customers will use: 250g/sqm, 260g/sqm, 280g/sqm, 350g/sqm, 390g/sqm, 400g/sqm, 450g/sqm,etc.



2. Specification of EVA Solar Film Producing Line​:

Extruder type GWS160 GWS160 GWS180 GWS180
raw material EVA ,POE EVA ,POE EVA ,POE EVA,POE
Product width 2200mm, 2400mm, 2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 15m/mn



Extruder type Co-extrusion GWS160+GWS160 Co-extrusion GWS180+GWS160 Co-extrusion GWS180+GWS180
raw material EVA ,POE EVA ,POE EVA,POE
layers A,A/B/A
Product width 2400mm,2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 18m/min

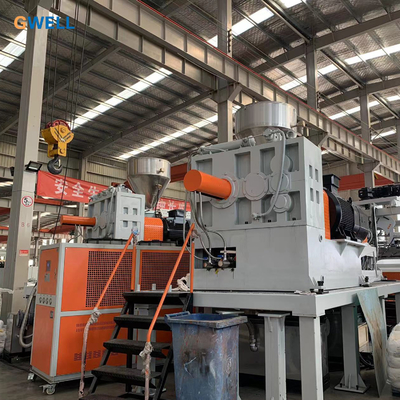

EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel 0

3. Introduction of EVA cast film extrusion line for solar panel, solar module:

Firs of all, thank  you for checking our website. If your team is planning to start EVA solar film machine project, you find the exactly right manufaturer. China Gwell is the biggest EVA solar film machine manufacturer in China. We have over 11 year experience about this EVA solar film extrusion lines. Now the production line has been upgraded to achieve a higher output and line speed. In order to meet the different requirements from customers, the machine can be customized to produce film with different width. The list in term 3 only shows some machine models and film width, please contact us for more information.

EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel 1



3. Suggestion for new starter to start EVA/POE solar film machine project

(1) If you are new in this industry, Gwell recommend you single extruder for producing EVA solar film.

(2) Choose the width for film which are most common used in your country's market, like 2200mm,2400mm,2600mm...

(3) Purchase auxiliary devices in your own country, save shipping containers becasue of its high and unstable price.



EVA Film Production Equipment For 1000mm Wide Photovoltaic Panel 2
