| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/yr |

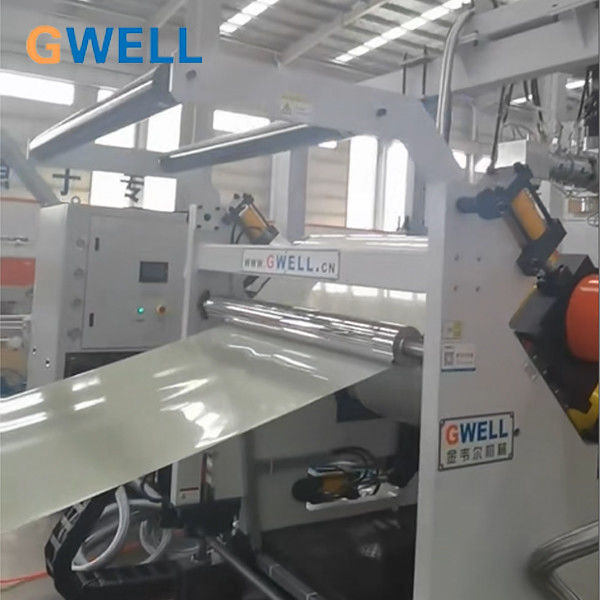

Recycled PET Sheet Extrusion Line For White Or Black Farm Seeding Tray
Recycled PET Sheet Extrusion Line For Farm Seeding Tray
1. Introduction of PET sheet making machine for seeding tray
Since the PET material that customers will use to produce seeding tray is mostly recycled PET and PET scraps, we will design the production line to be twin-screw designed. It can process 100% recycled PET and safe the step of cystallization and drying. By reducing this steps, it helps save a lot of time before production and save the power of this step. We have several different designs of the twin-screw production lines, mostly the difference is focused on the production capacity. And the sheet width can be customized as well.
If you are interested, please feel free to contact us.
2. Introduction of PET seeding tray sheet twin-screw exhaust extrusion line:
APET, PETG, CPET sheet twin-screw exhaust making machine is improved from PET sheet single-screw making machine. The raw material processing non-crystallization, non-drying exhaust type PET sheet unit of this making machine has the advantages of low energy consumption and high efficiency. This model is a continuous improvement and upgrade product of Gwell. It has made significant improvements to the core vacuum system. The technology upgrades from the original Roots-water ring pump set to the Roots-rotary vane pump set, which can make the vacuum reach ≤10Pa. At the same time, the PET special alloy steel thin-walled roller set is used to greatly improve the cooling efficiency, thereby increase output, improve product toughness and transparency. The operating system independently written by Gwell ensures the humanization and easy operation of the equipment.
2. Machine models of PET sheet making machine
| Type of machine | GWP75 Twin screw+GWS65 Single screw | GWP85 Twin screw+GWP52 twin screw | GWP95 Twin screw+GWP65Twin screw |
| Width of product | 800mm - 1000mm | 800mm - 1200mm | 1000mm - 1500mm |
| Thickness of product | 0.15mm - 2mm | 0.15mm - 2mm | 0.15mm - 2mm |
| Output | 300KG/H - 450KG/H | 500KG/H - 600KG/H | 800KG/H - 900KG/H |
| Type of machine | GWS90 single screw | GWS120 single screw | GWS150 single screw |
| Width of product | 600mm - 800mm | 800mm - 1200mm | 1000mm - 1500mm |
| Thickness of product | 0.15mm - 2mm | 0.15mm - 2mm | 0.15mm - 2mm |
| Output | 150KG/H - 200KG/H | 300KG/H - 400KG/H | 400KG/H - 500KG/H |
