| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical information is confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/yr |
Eva Solar Film Extrusion Machine Eva POE Film Production Line
Embossed EVA Cast Film Production Line For Solar Module White Color Semi-Transparent
Embossed EVA cast film production line for solar module
1. EVA solar film machine design
Full automatic in-line thickness tester log and report the thickness in time. The full automatic constant tension winding system is designed refer to the mechanical nature of EVA film. Less margin waste, Higher rate of finished products stem from continuous optimizing of each unit during long-term practice of production. These optimizations help reducing operating cost substantially.
2. Specification of EVA solar film machine:
|
Line type
|
600MW EVA/POE Solar Cell Encapsulatoin Line
|
300MW EVA/POE Solar Cell Encapsulatoin Line
|
|
Raw material
|
EVA Content: 25-33% / POE
|
EVA Content: 25-33% / POE
|
|
Output
|
400~500 kg/hr
|
300~350 kg/hr
|
|
Film in area
|
6,000,000 m2/year
|
4,320,000 m2/year
|
|
Encapsulating Capacity
|
500MW/year
|
300MW/year
|
|
Line Speed
|
5~12 m/min
|
5~12 m/min
|
|
Film Thickness
|
0.3-0.9mm
|
0.3-0.9mm
|
|
Film Width
|
2500mm
|
1250mm / 2500mm
|
|
Film Roller Dia
|
300-400mm
|
300-400mm
|
| Extruder type | Co-extrusion GWS160+GWS160 | Co-extrusion GWS180+GWS160 | Co-extrusion GWS180+GWS180 |
| raw material | EVA ,POE | EVA ,POE | EVA,POE |
| layers | A,A/B/A | ||
| Product width | 2400mm,2600mm | ||
| Product thickness | 0.2mm -1mm | 0.2mm -1mm | 0.2mm -1mm |
| Maximum linear speed | 15m/min, 16m/mn, 18m/min | ||
3. MIxing system of EVA/POE solar film production line
To make it clear for all the customers, especially customers who are new in this industry, EVA/POE solar film needs formula. The formula contains different types of materials in different state. At this time, we can equip customers with whole set of mixing system, it contains a conical mixer and related feeders. If you want to know more information, please contact us and we will share some more information and pictures for you.
4. Performance characteristics of Gwell EVA/POE film production line
(1) The cast extruder adopts EVA special single screw extrusion and POE special single screw extrusion. The screw barrel constant temperature circulating water cooling system solves the technical difficulties of EVA/POE plasticization and non-crosslinking.
(2) The roller body adopts double-sided embossing, and solves the technical difficulties of the film sticking to the roller.
(3) The cooling part adopts cooling rollers and stress-relieving cooling beds to make the film run smoothly and fully shaped to ensure that the shrinkage rate is less than 3%.
(4) The whole line adopts PLC automatic control to realize the operation of man-machine interface.
(5) The production line is equipped with an online quality monitoring and control system to ensure the product qualification rate.
(6) Patented design micro-tension winder, the line speed of the whole machine production line can reach 18m/min

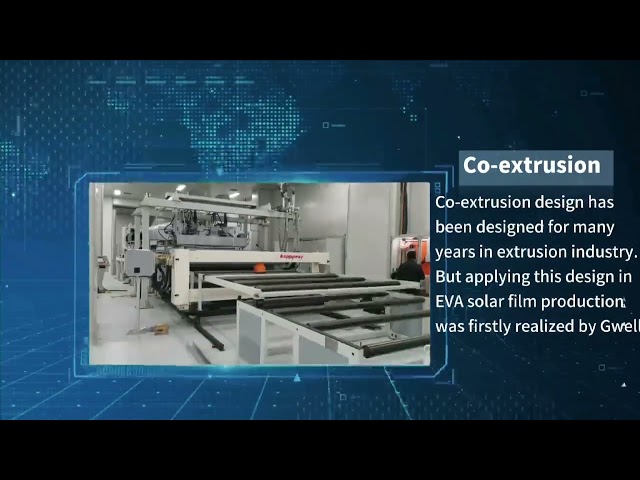

Video
Video
Video
Video
|
|
