POE EVA Solar Adhesive Film Extrusion Line Low Temperature

POE EVA Solar Adhesive Film Extrusion Line Low Temperature

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical information is confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China origin
Brand Name
GWELL
Certification
CE
Model Number
GWS120 GWS160 GWS180
Product Name:
EVA Solar Film Production Line With Whole Material Mixing System
Machine Type:
Cast Film Extrusion Line
Brand:
GWELL
Suitable Material:
EVA/POE
Film Structure:
One Layer(Pure EVA Film Or Pure POE Film)
Width:
Film Width Decided By Clients
Extruder Cooling Method:
Cooled By Water
Production Capacity:
300-700 Kg/h
Usage:
Encapsulation Layers On Solar Panel
Mixing System:
Provide Raw Material Mixing System
T-die:
Automatic Model, Manual Model
Thickness Control:
Closed Loop, Can Be Open Loop
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical information is confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
Highlight:

POE EVA Cast Film Extrusion Line

,

POE Eva Solar Film Extrusion Line

,

Low Temperature Eva Film Extrusion Line

Product Description

POE EVA Solar Adhesive Film Low Temperature Process Extrusion Production Line

EVA Solar Film Production Line With Whole Material Mixing System



1. Different design of EVA solar film production line

Special cooling channel of calenders keeps the temperature of calendar surface uniform. Peculiar silicon coated calendar can remove the stress of EVA/POE film effectively so that lower the shrinkage rate significantly. German-made gear pump ensures melt entering into -die with constant quantity and stable pressure. The close-loop can keep the system stable running intelligently. The equipment adopts single-screw design, equipped with weighing and batching system, central proportional control, automatic supply alarm for lack of material, and the products are cooled by soft water.Clear product, less fine particles, equipped with heat treatment oven, effectively remove stress, equipped with on-line thickness gauge device, trimming device, winding using friction winding method Constant tension control, production acceleration and deceleration can be synchronized ratio control, the speed can reach 10mmin_20mmin





2. Advantages when you choose GWELL for EVA solar film production line

(1) GWELL has over ten year experience about manufacturing EVA solar film production line

(2) Many successful cases: 80% of the EVA solar film extrusion lines in China are made by GWELL

(3) We keep updating the technology according to customer's feedback and market changes.

(4) We have much experience about lowering EVA solar film shrinkage



3. Specification of EVA Solar Film Producing Line​:

Extruder type GWS160 GWS160 GWS180 GWS180
raw material EVA ,POE EVA ,POE EVA ,POE EVA,POE
Product width 2200mm, 2400mm, 2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 15m/mn



Extruder type Co-extrusion GWS160+GWS160 Co-extrusion GWS180+GWS160 Co-extrusion GWS180+GWS180
raw material EVA ,POE EVA ,POE EVA,POE
layers A,A/B/A
Product width 2400mm,2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 18m/min

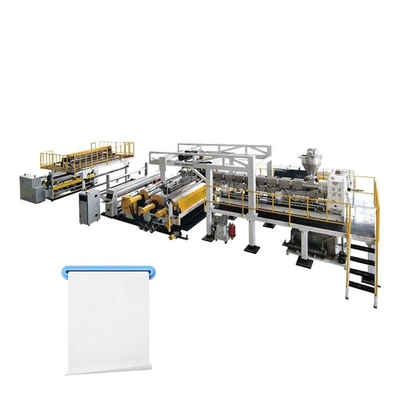

POE EVA Solar Adhesive Film Extrusion Line Low Temperature 0
