Single Layer Solar Eva Film Line For Glass Lamination

Single Layer Solar Eva Film Line For Glass Lamination

Product Details:

Place of Origin: China
Brand Name: GWELL
Certification: CE
Model Number: GWS180

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 90 days after all the technical information is confirmed
Payment Terms: L/C, T/T
Supply Ability: 200 sets/yr
Get Best Price Contact Now

Detail Information

Product Name: 2600mm Wide EVA Film Production Line Machine Type: EVA Solar Film Extrusion Line
Brand: GWELL Suitable Material: EVA
Film Structure: Single Layer Width: 2600mm
Thickness: 0.45mm Winder Design: Two Winders 1300mm+1300mm
Material Mixer: Mixing Kettle Automatic Level: Manual Mode, Semi-automatic Mode
T-die: Automatic Model, Manual Model Thickness Control: Closed Loop, Can Be Open Loop
High Light:

Single Layer Eva Solar Film Line


Glass Lamination Eva Solar Film Line


2600mm Eva Solar Film Extrusion Line

Product Description

Solar Eva Film Machine For Glass Lamination Eva Casting Film Making Machine Line

2600mm Wide EVA Film Production Line For Solar Energy Photovoltaic Module


In the solar industry, the most common encapsulation is with cross-linkable ethylene vinyl acetate (EVA). With the help of a lamination machine, the cells are laminated between films of EVA in a vacuum, which is under compression. This procedure is conducted under temperatures of up to 150°C. One of the disadvantages of EVA films is that it is not UV-resistant and therefore protective front glass is required for the UV screening.


Quality EVA film is known for its excellent durability, also in difficult weather circumstances, such as high temperature and high humidity.

Under the right circumstances, EVA film will have excellent adhesive bonding to solar glass (NOT standard glass, solar glass has a rough surface). Also EVA bonds very well to the backsheet.

EVA is known for its excellent transparency. This means that the optical transmission is acceptable and doesn't block too much of the sunshine trying to reach the solar cells. Nowadays, several manufacturers in Asia use a transparent backing, which has transparency between the cells as a result. This type of module is known as semi-transparent.

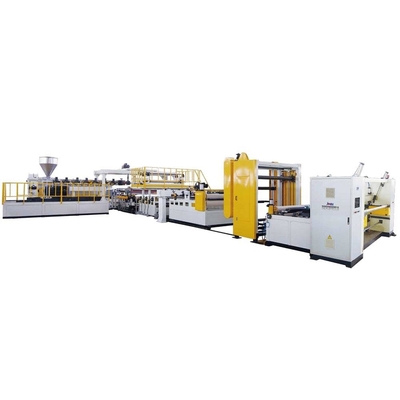

1. 2600mm wide EVA Film Production line

Based on the market demand and customer's feedback, Gwell has upgraded the EVA solar film machine for many times during the past ten years. Now we have EVA solar film machine to produce 2600mm wide EVA film. And there are two winders equipped on the production line so that customers can get two rolls of 1300mm wide EVA film at the same time. Meanwhile, since the machine model is designed to be large, the output and production line speed have been increased as well. If you want to know more information, please feel free to contact me or add my whatsapp/wechat. I can show you more information, videos and photos.


2. Specification of EVA Solar Film Producing Line​:

Extruder type GWS120 GWS150 GWS160 GWS180
Product width 2200mm, 2400mm, 2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 15m/mn


Extruder type Co-extrusion GWS160+GWS160 Co-extrusion GWS180+GWS160 Co-extrusion GWS180+GWS180
raw material EVA ,POE EVA ,POE EVA,POE
layers A,A/B/A
Product width 2400mm,2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 18m/min


Single Layer Solar Eva Film Line For Glass Lamination 0

3. EVA encapsulation film production line installation

Once the production line is going to be sent to customer's factory, then customer has to consider about the space for installation and machine running. In order to get clear and qualified EVA solar film, there are some workshop standards, like the dust free level, air conditioner for room temperature and etc. Also we mentioned about the space, customers have to leave enough space not only for putting machine, also for considering about some extra space for installation and regular maintenance. All the details will be included in our manual guiding book.


Single Layer Solar Eva Film Line For Glass Lamination 1

Single Layer Solar Eva Film Line For Glass Lamination 2
