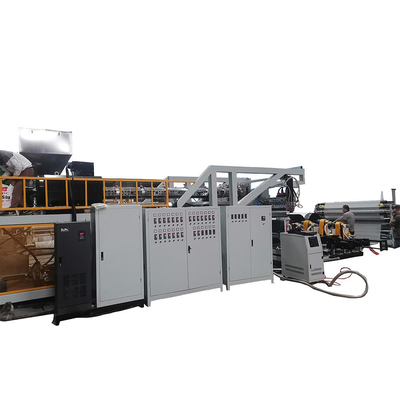

Solar Eva Film Making Machine For Glass Lamination

Solar Eva Film Making Machine For Glass Lamination

Product Details:

Place of Origin: China
Brand Name: GWELL
Certification: CE
Model Number: GWS120/GWS160/GWS180

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 90 days after all the technical documents are confirmed
Payment Terms: L/C, T/T
Supply Ability: 200 sets per year
Get Best Price Contact Now

Detail Information

Product Name: EVA Solar Film Making Machine Eva Film Production Line Machine Type: PV Solar Film Machine
Brand: GWELL Suitable Material: EVA/POE
Width: 1100mm 1200mm 1300mm 2200mm 2400mm 2600mm Die Lip Gap: 0.5mm(depends On Customers)
Screw Diameter: 120mm , 150mm , 160mm , 180mm Production Capacity: 300-700kg/h
Designed Line Speed: 6-18m/min Film Structure: Single Layer Film
Country Of Origin: China After-sales Service: Installation And Machine Debug
High Light:

Solar Eva Film Making Machine


Glass Lamination Solar Eva Film Line


18m/min Solar Eva Film Line

Product Description

Solar Eva Film Making Machine Line Eva Film For Glass Lamination Line

EVA Solar Film making machine Eva Film Production Line



EVA adhesive film for solar cell

It is used for capsulation of solar cell. To bond and seal after lamination and solidifying, it has the function of increasing light transmittance for cell pack, preventing moisture permeating, bearing high and low temp, resisting UV-Light etc. that will guarantee the use of solar cell pack is stable and efficient. It is one of the reliable materials for capsulation.

EVA, PVB film for glass interlayer
It is used for deep processing of special glass, such as safety and flat sandwich glass, arc type of sandwich glass, art sandwich glass, and bulletproof glass, color changing sandwich glass, electric conduction and intelligence glass etc.

TPU adhesive film
TPU film has excellent high tension, high tensile, high toughness and aged resistance, and it is also one kind of environment friendly material. Nowadays, TPU film has been widely used in shoes material, tailoring, air-filled toy, device for over and under water sports, medical, exercise, car chair material, umbrella, leather suitcase and bags etc.


1. Characteristics of POE film machine and EVA film machine

(1) POE has the general characteristics of thermoplastic elastomers. The soft chain curling structure of octene and the crystalline vinyl chain are used as physical crosslinking points, making it both excellent toughness and good processability;

(2) The price is low and the relative density is small, so the volume and price are low;

(3) Excellent heat resistance and cold resistance, and a wide using temperature range;

Solar Eva Film Making Machine For Glass Lamination 0

(4) Weather resistance, good aging resistance, because there are no unsaturated double bonds in the molecular structure of POE plastics, it has excellent aging resistance;

(5) Oil resistance, compression permanent deformation and abrasion resistance are not good;

(6) POE plastics have narrow molecular amount distribution, good fluidity, and good compatibility with polyolefins;

(7) Good fluidity can improve the dispersing effect of the filler and at the same time increase the weld line strength of the product.

Solar Eva Film Making Machine For Glass Lamination 1


2. Comparison and introduction of POE solar film extrusion line and EVA solar film extrusion line

Because the EVA film machine has the features of low strength, high water vapor transmission rate and water absorption rate, and its poor weather resistance, it needs to be edge-sealed when used on double glass modules. However, water vapor will still pass through during normal use, resulting in the film atomization which affects the light transmittance and reduces the power generation of the module.

And POE has a new type of polyolefin thermoplastic elastomer with narrow relative molecular mass distribution and narrow comonomer distribution and controllable structure.

Solar Eva Film Making Machine For Glass Lamination 2

There are currently two types of POE film extrusion line on the market. One is a non-crosslinked polyolefin packaging material that does not contain a crosslinking agent and uses a combination of functional polymers to make the material's heat resistance and adhesion meet the requirements of use. The other is a cross-linked polyolefin encapsulating material containing peroxide cross-linking agent or silane cross-linking agent and tackifier. This kind of film is similar to EVA film in terms of production technology and process.

Compared with EVA film machine, the biggest advantage of POE film is low water vapor transmission rate and high volume resistivity, which ensures the safety and long-term aging resistance of the module in high temperature and high humidity environment, so that the module can be used for a long time. Generally speaking, the performance of POE film is superior to EVA film.

Solar Eva Film Making Machine For Glass Lamination 3


3. Performance characteristics of Gwell EVA/POE film production line

(1) The cast extruder adopts EVA special single screw extrusion and POE special single screw extrusion. The screw barrel constant temperature circulating water cooling system solves the technical difficulties of EVA/POE plasticization and non-crosslinking.

(2) The roller body adopts double-sided embossing, and solves the technical difficulties of the film sticking to the roller.

(3) The cooling part adopts cooling rollers and stress-relieving cooling beds to make the film run smoothly and fully shaped to ensure that the shrinkage rate is less than 3%.

(4) The whole line adopts PLC automatic control to realize the operation of man-machine interface.

(5) The production line is equipped with an online quality monitoring and control system to ensure the product qualification rate.

(6) Patented design micro-tension winder, the line speed of the whole machine production line can reach 18m/min

Solar Eva Film Making Machine For Glass Lamination 4




Extruder type GWS160 GWS160 GWS180 GWS180
Product width 2200mm, 2400mm, 2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 10m/min ,12m/min,15m/mn


Extruder type Co-extrusion GWS160+GWS160 Co-extrusion GWS180+GWS160 Co-extrusion GWS180+GWS180
raw material EVA ,POE EVA ,POE EVA,POE
layers A,A/B/A
Product width 2400mm,2600mm
Product thickness 0.2mm -1mm 0.2mm -1mm 0.2mm -1mm
Maximum linear speed 15m/min, 16m/mn, 18m/min


Solar Eva Film Making Machine For Glass Lamination 5

Solar Eva Film Making Machine For Glass Lamination 6

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
