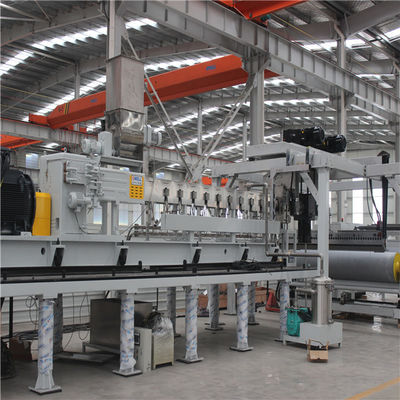

TPU Cast Film Extrusion Line Single Screw / Twin Screw

Cast film extrusion line extrusion coating lamination plant TPU casting extrusion laminating machine

Professional extrusion machine for TPU/EVA/PA/PO/PU etc. hot melt adhesive film making, for high grade quality breathable hot melt adhesive film making, for underwear, clothing etc. industry. Product could coat on release material, nonwoven or fabric.

I. Introduction of PVB Film Production Line and PVB Building Automobile Glass Cast Film Extrusion Line

• Coating thickness, 0.01-0.2mm.
• Unwinder device use magnetic powder brake.
• Rewinder device use magnetic powder clutch rewind.
• Max. speed: 2-30m/min or adjust.
• Coating precision 4%.
• Control method: PLC touch screen concentrate control.
• Adhesive: thermoplastic material.
• Max.temperature: 230℃.
• Extrusion coating roller use silica gel roller or steel roller according product adhesive surface request.
• Unwinder automatic guiding device, constant tension control.
• Generator roller use import silica gel roller. Some transfer roller will use anti-stick roller(according product request).
• Install with guiding device.
• Extrusion device screw size according equipmentrequest, T-DIE head high grade precision special steel, extrusion device install front back electric moving system. Cooling water recycle device at screw feed port.
• Cooling water recycle control system, die head transfer hot oil temperature control system. Steel roller heating transfer hot oil control system.

II. Features of PVB Film Production Line

1. Adapt to different types of processing systems with various material

2. From loading material to the final winding, it is using automatic mixing, PLC full integration, and it can do turnkey project

3. High output, low energy consumption and high degree of automation.

III. Types of PVB Building Automobile Glass Cast Film Extrusion Line

PVB Building Automobile Glass Cast Film Extrusion Line is divided into two kinds. One is a dry process, also called roll method of the process, through the stretch film extrusion, cooling stereotypes winding in the air. The other is a wet process, also called water craft, stretch film extrusion of film through tank cooling stereotypes, blow dry after winding. There are a lot of equipment differences between two kinds of process , and their prices is also very different. The main machine can adopt single screw extruder or parallel twin screw extruder according to different needs and raw materials. Please consult the sales engineer for details. PVB glass film production line is the core technology of Gwell.

IV. Models of PVB Film Production Line and PVB Building Automobile Glass Cast Film Extrusion Line:
