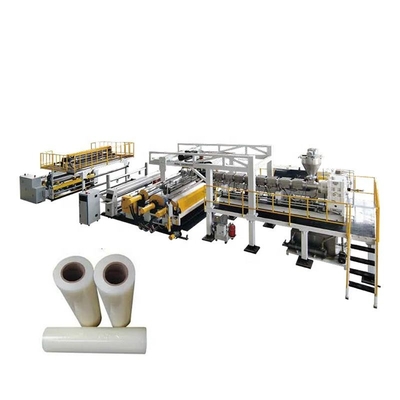

PVDF Casting Film Plastic Sheet Extrusion Machine For SGP

PVDF Casting Film Plastic Sheet Extrusion Machine For SGP

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: T/T, L/C
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS120/GWS150/GWS85/GWS95
Product Name:
SGP Solar Film Production Machine For BIPV Modules
Machine Type:
Cast Film Extrusion Line
Brand:
Gwell
Suitable Material:
SGP
Width:
1300-3200mm
Thickness:
0.2-1.52mm
Screw Design:
Single Screw/Double Screw
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
T/T, L/C
Supply Ability:
200 sets per year
High Light:

SGP Solar Film Production Machine

,

PVDF Plastic Sheet Extrusion Machine

,

Single Screw Plastic Sheet Extrusion Machine

Product Description

PVDF Plastic Sheet Extrusion Machine Casting Film Sheet Production Line

SGP Solar Film Production Machine For BIPV Modules



1. Machine model of SGP solar Film production machine

Screw diameter:
Φ110mm
Screw ratio:
33:1
Screw material:
38CrMoALA
Rewinding width:
1600mm
Extrusion:
100-150KG/H
Machine speed:
30-100m/min
Working voltage:
380V/50HZ/3
Applicable material:
PE/TPE/CPE



2. Comparison of SGP Solar film and EVA encapsulation film

EVA is a thermosetting resin with cross-linking reaction; SGP is a thermoplastic resin with reproducibility and no cross-linking reaction;

The domestic glass curtain wall specification clearly puts forward the requirement of "application of SGP". And BIPV photovoltaic modules using SGP instead of EVA can achieve a longer service life.

SGP has strong bonding performance and is safer than EVA film;

There are many formulas for EVA, and the packaging process is not easy to control; the formula for SGP solar film is simple, the quality control is stable, and the shelf life is long;

SGP solar film has poor fluidity, which can prevent film overflow during processing.





3. SGP Photovoltaic Encapsulation Film production machine introduction:

SGP solar film is mainly used for BIPV modules, the structure is tempered glass (super white)-SGP-cell-SGP-tempered glass (ordinary).

At present, the encapsulation forms of photovoltaic modules mainly include glass-EVA-backplane type and glass-SGP-glass type. I will elaborate on the SGP encapsulation film and SGP solar film production machine.

Photovoltaics is a rapidly developing emerging industry that converts solar energy into electrical energy. Among them, crystalline silicon solar cell modules are mainly used in large-scale grid-connected power generation, off-grid power stations, BIPV photovoltaic building integration, etc., and SGP encapsulation film production lines are mainly used in BIPV buildings,photovoltaic power generation components.



4. Introduction of SGP solar Film production machine

The SGP solar film production machine manufactured by GWELL adopts unique design and advanced manufacturing technology, which improves the stability and automation of the machine. The feeding system is connected with the extruder to realize the accurate online proportioning of raw materials, so that the quality of the SGP film is stable and labor cost will be reduced. Specially designed rollers are used to cool the SGP film uniformly and reduce the stress caused by uneven heating and cooling, thereby ensuring the correct shrinkage rate. Since the SGP film is relatively viscous, we have added an isolation film unwinding device to effectively prevent the SGP film from sticking together during rewinding.

PVDF Casting Film Plastic Sheet Extrusion Machine For SGP 0








PVDF Casting Film Plastic Sheet Extrusion Machine For SGP 1
