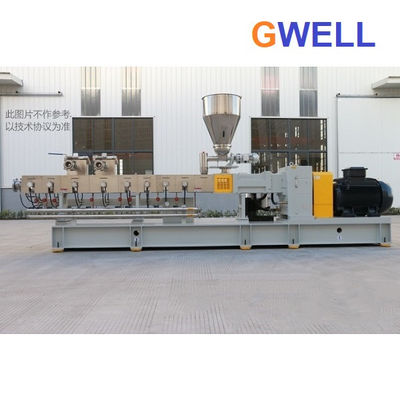

Double Screw PET Plastic Sheet Extruder Line Making Machine

Double Screw PET Plastic Sheet Extruder Line Making Machine

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, AND WOODEN CASE PACKAGE FOR KEY PARTS.
Delivery Period: 90 days after the technical documents are confirmed
Payment Method: T/T, L/C
Supply Capacity: 150 sets/year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS GWP
Product Name:
PET Sheet Machine
Suitable Material:
PET APET PETG CPET
Sheet Width:
600-1500mm
Sheet Thickness:
0.15-1.5mm
Extruder Design:
Single Extruder , Co-extrusion
Layer Structure:
Single Layer , Double Layers , Three Layers , Etc
Vacuum Sheet:
Equipped With Silicon Oil Coating And Drying
Protective Film:
Double Side Film Laminating
Spare Part:
Yes
Warranty:
One Year
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, AND WOODEN CASE PACKAGE FOR KEY PARTS.
Delivery Time:
90 days after the technical documents are confirmed
Payment Terms:
T/T, L/C
Supply Ability:
150 sets/year
High Light:

Double Screw PET Sheet Extruder

,

co extrusion PET Sheet Extruder

,

Double Screw PET Sheet Making Machine

Product Description

Double Screw PET Plastic Sheet Extruder Line Making Machine

Description:

The PET parallel twin screw sheet extrusion line for PET sheet is equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy consumption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET resin, the symmetrical and thin-wall calender roller highten the cooling effect and improve the capacity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.



1) Plastic sheet making machine has High capacity.
2) Energy saving: 20% energy saving than normal machines.
3) Four self-designed major core technology of sheet extruder: extrusion system, die, roller, distributor. They are all invented and designed by ourselves. The core technology has many testing points and adopts electrical integration of double protection.
4) The operation fully reflects the man-machine engineering principle, it can make the function more entirely and the operation more simple.
5) Only the tablet machine independently walking, avoid the interference from other power to influence the stability of the tabletting sheet.
6) The plasticizing effect of the sheet is very good. After the sheet formed and walking in curved line, it can make sure the stability of the sheet stock.
7) The heating system is controlled by high-grade china heater, stainless heater, inner-storing type single heating pipe and precision temperature-controlling die mould, is exact in controlling temperature, quickly in heating, good in keeping temperature, long life and save time and energy.





Double Screw PET  Plastic Sheet Extruder Line Making Machine 0



(1) If customers require multilayer PET sheets, the number of extruders needs to be increased. Three-layer PET sheet needs at least two extruders, which can produce PET sheets with ABA structure; it can also be customized according to customer requirements. 5-layer PET sheet, if the sheet structure is ABCBA, then 3 extruders are required, and a distributor is required in front of the mold to adjust the distribution ratio;



(2) According to the purpose of PET sheet, the auxiliary equipment equipped on the PET production line is different. If customers use PET sheets to make blister products, such as plastic electronic product packaging, parts packaging, fast food boxes, plastic cups, etc., then the production line needs to be equipped with silicone oil coating and drying equipment, which is beneficial to PET sheets In the later stage, it is molded on the blister machine and demolded; if the PET sheet produced by the customer is not used for thermoforming, this part can be removed, which can also save the customer the equipment purchase cost; if the PET sheet produced by the customer needs to be used for post-printing Or it can be combined with other materials, then a corona machine needs to be added to the PET sheet equipment. The corona machine can treat the surface of the PET sheet; if the surface of the PET sheet produced by the customer needs to be smooth and bright, it can be on the PET sheet line Increase the upper and lower laminating devices to cover both the front and back sides of the PET sheet with a protective film;



If you want to know more information, please feel free to contact us.

Double Screw PET  Plastic Sheet Extruder Line Making Machine 1





Machine configuration

Type of extrusion line single screw sheet PET extrusion line single screw venting sheet PET extrusion line twin screw venting PET sheet extrusion line PET sheet planetary multi-screw exhaust extrusion line
Method of dealing material Crystallization and drying Free from crystallization and drying Free from crystallization and drying Free from crystallization and drying
Structure of Product Single layer, double-layer or multi-layer PET sheet
Width of Product 600mm-1220mm
Thickness of Product 0.17mm-2mm
Output 200kg/h-1000kg/h





Double Screw PET  Plastic Sheet Extruder Line Making Machine 2

Double Screw PET  Plastic Sheet Extruder Line Making Machine 3
