1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines

1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90/GWS120/GWP85/GWP95
Product Name:
Disposable Water Cup PET Sheet Production Line For Thermoforming Usage
Brand:
GWELL
Country Of Origin:
China
Suitable Material:
Fresh PET, Recycled PET, PET Flakes, PET Scraps
Width:
800mm, 1000mm, 1500mm
Thickness:
0.2-1.5mm
Screw Design:
Single Screw / Parallel Twin Screw
Product Application:
Disposable Plastic Water Cups
Sheet Structure:
One Layer,two Layers, Three Layers, Multiple Layers
Color Of Sheet:
Transparent
Warranty:
One Year
After-sale Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
High Light:

1500mm Plastic Sheet Extruder

,

1500mm Plastic Sheet production line

,

PET Plastic Sheet production line

Product Description

Disposable Water Cup PET Sheet Production Line For Thermoforming Usage



1. Introduction of PET sheet making machine

(1) Single screw extruder design for PET sheet:  If the material that customers will use is all new and fresh PET material, then we will highly recommend this single screw design extrusion line. For making highly transparent PET sheet, single screw is always the best choice; But please also notice that the single design screw extrusion line also has some requirements to the PET material:

1. it limits the amount rate of recycled PET material;

2. it requires to equip cystalizer and dryer to treat the PET material in advance;



(2) Twin screw extruder design for PET sheet: If the types of PET material that customers choose are both recycled PET material and fresh PET material, and most of the time, recycled PET is the main one, then we will definitely recommend customers to choose twin-screw design. Twin screw design extruder can process 100% recycled PET material. And it doesn't require customers to equip cystallizer for extra pro-treatment.

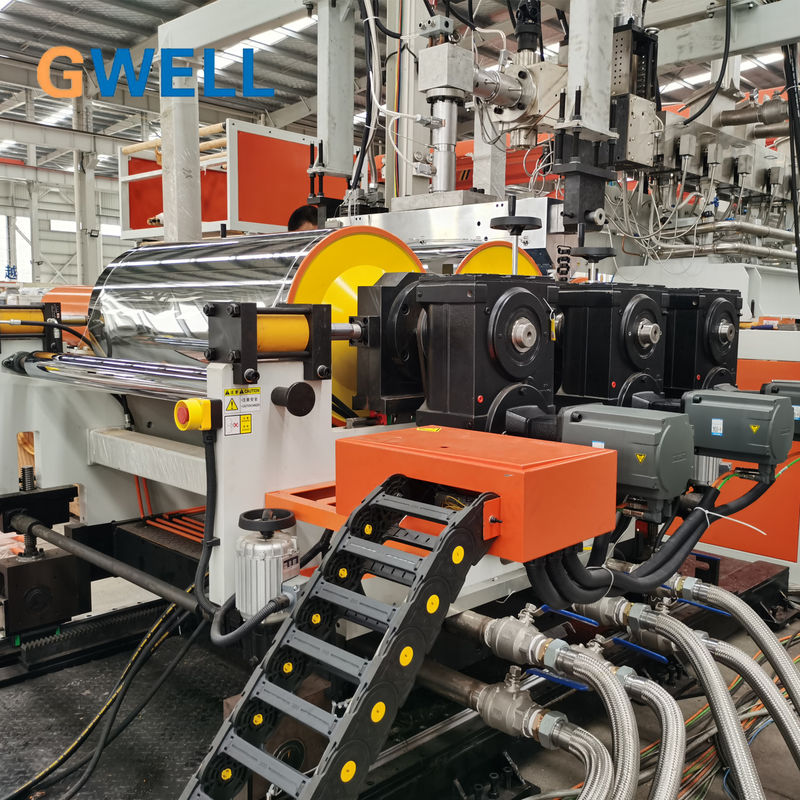

Please check the picture below: it is designed to be co-extrusion production line. That is to say, there are two or more sets of extruders on one production line. It is designed to be two sets of single screw extruder+one set of twin-screw extruder, if you want to know more about the machine, please feel free to contact me

1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines 0





1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines 1





1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines 2

2. Machine models of PET sheet making machine

Type of machine GWP75 Twin screw+GWS65 Single screw GWP85 Twin screw+GWP52 twin screw GWP95 Twin screw+GWP65Twin screw
Width of product 800mm - 1000mm 800mm - 1200mm 1000mm - 1500mm
Thickness of product 0.15mm - 2mm 0.15mm - 2mm 0.15mm - 2mm
Output 300KG/H - 450KG/H 500KG/H - 600KG/H 800KG/H - 900KG/H




Type of machine GWS90 single screw GWS120 single screw GWS150 single screw
Width of product 600mm - 800mm 800mm - 1200mm 1000mm - 1500mm
Thickness of product 0.15mm - 2mm 0.15mm - 2mm 0.15mm - 2mm
Output 150KG/H - 200KG/H 300KG/H - 400KG/H 400KG/H - 500KG/H





1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines 3

1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines 4



1500mm PET Plastic Sheet Production Line Making Extruder Equipment Machines 5
