Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder

Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days for the production cycle
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90 GWS120 GWP75 GWP85 GWP95
Product Name:
PET Three Layers GAG Sheet Extrusion Line PET Sheet Production Machine
Machine Type:
Pet Sheet Extruder Machine
Brand:
GWELL
Suitable Material:
PET
Width:
800-1500mm
Thickness:
0.15-1.5mm
Screw Design:
Single Screw / Parallel Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days for the production cycle
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
High Light:

Mono Layer Plastic Extrusion Machines

,

Mono Layer Sheet Extrusion Line

,

1.5mm thickness Sheet Extrusion Line

Product Description

PET Three Layers GAG Sheet Extrusion Line PET Sheet Production Machine



1. Introduction of PET sheet extrusion line

(1) PET three-layer sheet extrusion line​ or GAG sheet production line: PET three-layer sheet extrusion extrusion line is improved from PET sheet production equipment. According to different types of extruders, there are different raw material processing methods. This machine uses two or more extruders. Either a single-screw extruder or a twin-screw extruder can be used to produce three-layer PET sheets.

GAG sheet is the most commonly used PET three-layer sheet extrusion line, which is composed of PETG+APET+PETG through an extrusion line, distributor and die. It is widely used in furniture and decoration materials.

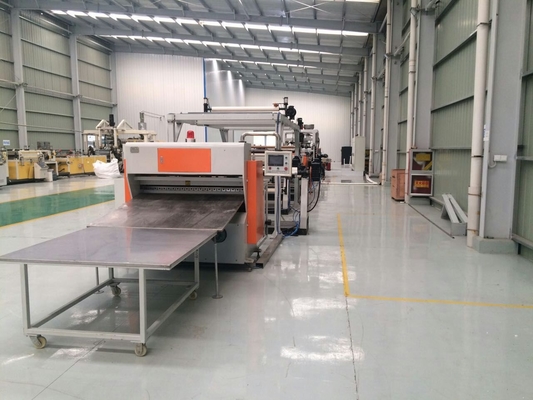

Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder 0


(2) PET sheet twin-screw exhaust extrusion line: PET sheet twin-screw exhaust extrusion line is improved from PET sheet single-screw extrusion line. The raw material processing non-crystallization, non-drying exhaust type PET sheet unit of this extrusion line has the advantages of low energy consumption and high efficiency. This model is a continuous improvement and upgrade product of Gwell. It has made significant improvements to the core vacuum system. The technology upgrades from the original Roots-water ring pump set to the Roots-rotary vane pump set, which can make the vacuum reach ≤10Pa. At the same time, the PET special alloy steel thin-walled roller set is used to greatly improve the cooling efficiency, thereby increase output, improve product toughness and transparency. The operating system independently written by Gwell ensures the humanization and easy operation of the equipment.
Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder 1



2. Machine Specification of PET sheet extrusion line

Type of machine GWP75 Twin screw+GWS65 Single screw GWP85 Twin screw+GWP52 twin screw GWP95 Twin screw+GWP65Twin screw
Width of product 800mm - 1000mm 800mm - 1200mm 1000mm - 1500mm
Thickness of product 0.15mm - 2mm 0.15mm - 2mm 0.15mm - 2mm
Output 300KG/H - 450KG/H 500KG/H - 600KG/H 800KG/H - 900KG/H





Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder 2

Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder 3







Mono Layer Plastic Extrusion Machines Sheet Line Pet Pp Ps Sheet Extruder 4

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
