ASA Casting Film Extrusion Production Line Single Screw Design

ASA Casting Film Extrusion Production Line Single Screw Design

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/yr
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90,GWS120
Product Name:
ASA Cast Film Production Machine
Machine Type:
Plastic Cast Film Extrusion Line
Brand:
GWELL
Suitable Material:
ASA
Width:
1000mm --1500mm
Thickness:
0.05mm--0.2mm
Screw Design:
Single Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/yr
Highlight:

Casting Film Extrusion Production Line

,

ASA Casting Film Extruder

,

Single Screw Casting Film Extrusion Line

Product Description

High Quality ASA Casting Film Extrusion Production Line Machine



1. Introduction of ASA film

The product has weather-resistant aging, anti-ultraviolet radiation, non-toxic, tasteless, anti-mold, difficult to burn, self-cleaning, and acid, alkali, salt and other chemical corrosion characteristics. At the same time, it also has a rigid and flexible shape and good processing and forming performance.





Mainly Applicable

  • Building material decorative film: home profile protective film;
  • Fluorine material high weather resistant film, furniture decoration film, outdoor products protective film, can also be applied to plastic steel doors and Windows, roofing tiles, aluminum alloy, aluminum plate, steel plate, wood board, wood plastic board, plastic floor, calcium and magnesium plate, cement board, building curtain wall and other surface coating.
  • Film-covered profiles not only play a beautiful and protective role, but also improve the service life of profiles.



2. Application of ASA film

Because ASA film has good weather resistance, uniformity, extensibility and crease resistance, it is widely used in roof color steel tiles, resin tiles and plastic sheets, sheet surfaces, outdoor plastic lounge chairs, outdoor lamps and lanterns surface coating and advertising board, decorative board.



3. The equipment features of the ASA cast film production line produced by our company

(1) The whole set of equipment adopts PLC, closed-loop control so it can realize one-key speed increase and is easy to operate.

(2) The special screw design of the extruder ensures that the melting of the raw plastic material, the color of the product is uniform, and the extrusion volume is high

(3) The full-automatic mold combined with the thickness gauge can more effectively fine-tune the melt thickness deviation in the transverse width of the die, and the thickness uniformity is guaranteed to be ±10 um.

(4) The casting roll adopts the method of integral machining of the inner runner to ensure the temperature control within ±1 degree, and the rolling surface control accuracy within± 10um to ensure more accurate casting film thickness.

(5) The tension sensor and control system are used to ensure the tension control is ± 10um.

(6) A complete set of servo motors and servo controllers make the equipment run more accurately.

(7) The fully automatic cutting and rewinding machine has two functions: contact rewinding and gap rewinding. The winding tape has tension control, the adjustment range is 5-200N/M.



4. Machine configuration:

model   GWS90 GWS120
Raw materials   ASA  ASA
Product width   1000mm  1500mm
Product thickness   0.05-0.2mm 0.05-0.2mm
Output   150-180kg/h 250-350kg/h

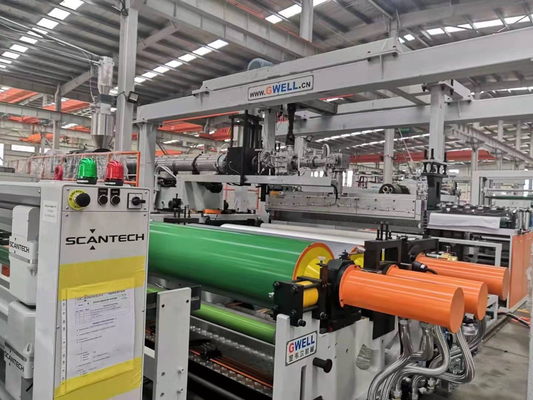

ASA Casting Film Extrusion Production Line Single Screw Design 0





ASA Casting Film Extrusion Production Line Single Screw Design 1








ASA Casting Film Extrusion Production Line Single Screw Design 2





ASA Casting Film Extrusion Production Line Single Screw Design 3

ASA Casting Film Extrusion Production Line Single Screw Design 4

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
