| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90-120 days for production cycle |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets per year |

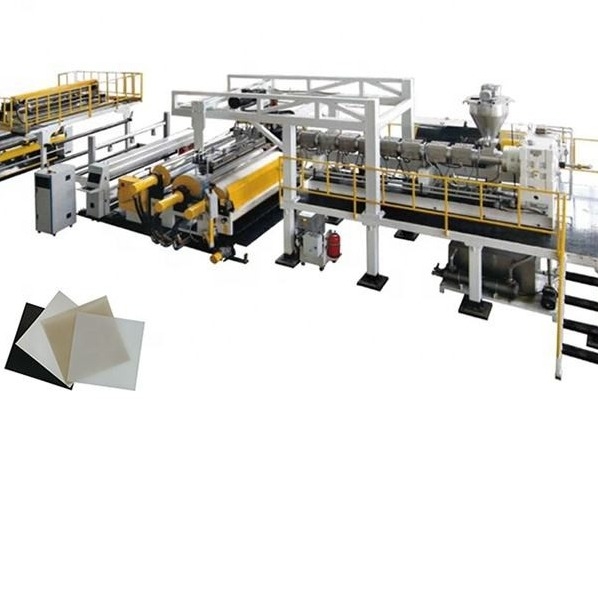

PVDF Solar Plate Back Film Cast Film Production Machine,Long life and high output
1.PVDF film production line main USES
(1) PVDF solar plate back film production line: the film is used for solar plate back film to protect the battery, mainly for aging resistance and abrasion resistance;
(2) PVDF outdoor decoration film production line: the film is used for the protection of glass, external walls, doors and Windows, outdoor billboards of outdoor buildings, mainly for aging resistance and abrasion resistance;
(3) PVDF battery diaphragm production line: membrane is used for diaphragm applications in fuel cells and lithium ion polymer batteries;
(4) PVDF filtration membrane production line: membrane filtration membrane is used for water purification treatment, divided into ultrafiltration membrane and microfiltration membrane. It is mainly used for sewage treatment, seawater desalination, and removal of macromolecules, bacteria, sediment, salt and other impurities.
(5) PVDF piezoelectric film production line: PVDF piezoelectric film has the advantages of wide frequency response, large dynamic range, high sensitivity of power and electricity conversion, high mechanical property strength, easy matching of acoustic impedance, etc.
2.Detailed description of PVDF solar plate back film production line
PVDF film, technical name polyvinylidene fluoride. Our GWS75 production line can be used to produce PVDF film with thickness of 25-30 microns and width of 1250mm. The production line speed is 20m/min and the output can reach 120KG/H. GWS90 production line can be used to produce PVDF solar plate back film with thickness of 25-30 microns and width of 1250mm. The production line speed is 30m/min and the output can reach 180KG/H. GWS120 production line can be used to produce PVDF silicon wafer pickling thick plate with thickness of 1-10mm and width of 1250mm, and the output is about 350KG/H.
| Type of extruder | One single-screw extruder | Two single-screw extruders co-extrusion |
| Structure of product | Single layer | A; A/B; A/B/A |
| Width of product | 1250mm-2200mm | 1250mm-2200mm |
| Thickness of product | 0.02mm-0.03mm | 0.02mm-0.03mm |
| Output | 120kg/h-180kg/h | 140kg/h-200kg/h |
| Max linear speed | 30m/min | 30m/min |
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
