| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/yr |
PC Hollow Board Making Machine Hollow Section Polycarbonate Sheet Extruders Machine
1. Machine configuration:
| Extruder Specification | Single screw extruder GWS120 | Single screw extruder GWS120+GWS65 | Single screw extruder GW150+ GWS90 |
| Structure of Product | Single layer A | A; A/B/A | A; A/B/A |
| Suitable Material | PC | ||
| Width of Product | 1220mm-1500mm | 1220mm-1500mm | 1500mm-2100mm |
| Thickness of Product | 4mm-20mm | 4mm-20mm | 4mm-20mm |
| Output | 250KG/H - 350KG/H | 300KG/H - 400KG/H | 450KG/H - 550KG/H |
2. Explain of PC sunshine sheet making machine
GWELL's PC hollow grid sheet making machine relies on more than ten years of manufacturing experience. The products produced by our machines have smooth and flat surface, and the products have the characteristics of beautiful appearance and pressure resistance. The length can be set according to requirements; the width range is 600mm-2100mm; the thickness range is 4mm-20mm; the grid layer types can be single-layer, double-layer and triple-layer. We can make two-layer or three-layer PC sheet by using two extruders.
3. Explain of PC sunshine sheet

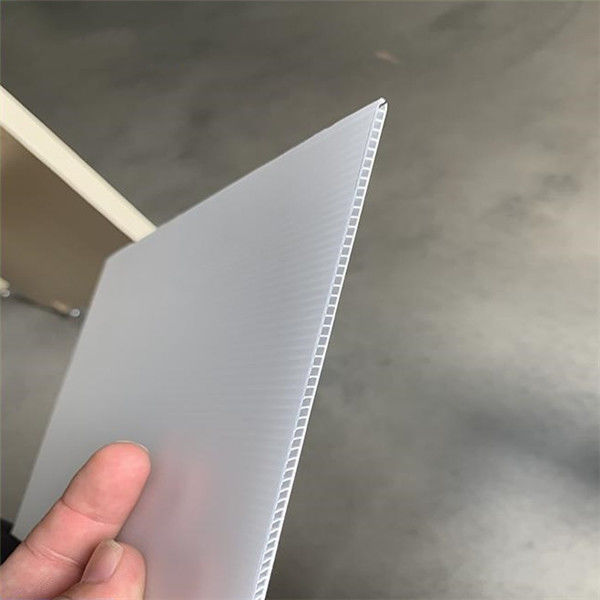

PC sunshine board (also known as PC hollow board) is a high-performance engineering plastics - polycarbonate (PC) resin, which has high transparency, light weight, shock resistance, sound insulation, heat insulation, flame retardant, anti-aging and other characteristics. This kind of high-tech, comprehensive performance, energy efficient and environmentally friendly plastic plates, plastic building materials are widely used internationally. It is widely used in the fields of commercial, factory, sunshade canopy, agricultural greenhouse, breeding industry and flower canopy, telephone booth, newspaper booth, station and other public facilities, sound insulation of expressway, advertisement decoration.
Video
Video
Video
|
|
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Period: | 90 days after all the technical requirements are confirmed |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 200 sets/yr |
PC Hollow Board Making Machine Hollow Section Polycarbonate Sheet Extruders Machine
1. Machine configuration:
| Extruder Specification | Single screw extruder GWS120 | Single screw extruder GWS120+GWS65 | Single screw extruder GW150+ GWS90 |
| Structure of Product | Single layer A | A; A/B/A | A; A/B/A |
| Suitable Material | PC | ||
| Width of Product | 1220mm-1500mm | 1220mm-1500mm | 1500mm-2100mm |
| Thickness of Product | 4mm-20mm | 4mm-20mm | 4mm-20mm |
| Output | 250KG/H - 350KG/H | 300KG/H - 400KG/H | 450KG/H - 550KG/H |
2. Explain of PC sunshine sheet making machine
GWELL's PC hollow grid sheet making machine relies on more than ten years of manufacturing experience. The products produced by our machines have smooth and flat surface, and the products have the characteristics of beautiful appearance and pressure resistance. The length can be set according to requirements; the width range is 600mm-2100mm; the thickness range is 4mm-20mm; the grid layer types can be single-layer, double-layer and triple-layer. We can make two-layer or three-layer PC sheet by using two extruders.
3. Explain of PC sunshine sheet
PC sunshine board (also known as PC hollow board) is a high-performance engineering plastics - polycarbonate (PC) resin, which has high transparency, light weight, shock resistance, sound insulation, heat insulation, flame retardant, anti-aging and other characteristics. This kind of high-tech, comprehensive performance, energy efficient and environmentally friendly plastic plates, plastic building materials are widely used internationally. It is widely used in the fields of commercial, factory, sunshade canopy, agricultural greenhouse, breeding industry and flower canopy, telephone booth, newspaper booth, station and other public facilities, sound insulation of expressway, advertisement decoration.
