Three Layers Tpu Extrusion Cast Film Making Machine Single Screw Extruder

Three Layers Tpu Extrusion Cast Film Making Machine Single Screw Extruder

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 5-8 days
Payment Method: L/C, T/T
Supply Capacity: 1 set per 90 days
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90/GWS120/GWS150
Product Name:
TPU Three-layers Cast Film Making Machine,Single Screw Extruder,Good Quality And Good Price
Machine Type:
Plastic Cast Film Extrusion Line
Brand:
GWELL
Layer:
Single Layer, Double Layer, Three Layer
Suitable Material:
TPU
Width:
1000-2000mm
Thickness:
0.08-3mm
Screw Design:
Single Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
5-8 days
Payment Terms:
L/C, T/T
Supply Ability:
1 set per 90 days
Product Description

TPU Three-Layers Cast Film Making Machine Single Screw Extruder Good Quality And Good Price



1.Introduction of TPU cast film production machine

Due to the high density, elasticity, and high temperature characteristics of TPU granular resin after drying, the resin is easy to be stuck in ordinary hopper instead of entering into the extruder port, so special design of the hopper and barrel discharge opening is required. The TPU cast film extrusion production line has adjustable processing power, and the raw materials are extruded three times to make the finished product uniform in specifications. Feel free to contact us for more information.



2.Introduction and use of TPU cast film

TPU film not only has excellent tension, toughness and aging resistance, and is a mature environmental protection material. At present, TPU has been widely used in: shoes, clothing, inflatable toys, water and underwater sports equipment, medical equipment, fitness equipment, car chair materials, umbrellas, leather cases, bags, car clothes coated. Water-proof and moisture-permeable TPU film is used with various fabrics to achieve water-proof and moisture-permeable effect.



3. Machine configuration

Type of extruder Single screw extruder GWS90 Single screw extruder GWS120 Single screw extruder GWS150
Structure of product Single layer, double-layer, three-layer Single layer, double-layer, three-layer, multi-layer Single layer, double-layer, three-layer, multi-layer
Thickness of product 0.02mm-2mm 0.02mm-3mm 1mm-5mm
Width of product 1300mm-1600mm 1300mm-1600mm 1300mm-2000mm
Output 150kg/h-180kg/h 250kg/h-300kg/h 350kg/h-500kg/h



Gwell plastic transparent sheet unit production line absorbs and digest western country advanced extrusion technology. And its main parts choose from all over the world (such as screw, barrel, roller, etc.). The energy consumption of its complete sets of equipment , intelligent, automation, safety standard, technology standard, etc., have been at or near the world standard of the product. This series of products has a number of inventions and utility model patents so that it replaces imported equipment, and has a cost-effective advantage. The high-level transparent plate products are widely used in optics, home appliances, construction engineering, decoration, furniture, advertising, handicrafts and other industries and civil industries. Its quality has reached the world's product performance, and we have a matching team of experts and process engineers to help users debug, produce high-quality products.

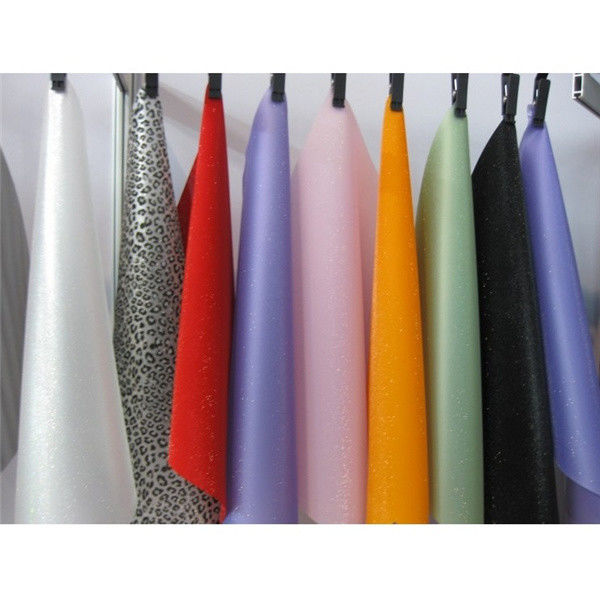

Three Layers Tpu Extrusion Cast Film Making Machine Single Screw Extruder 0

Three Layers Tpu Extrusion Cast Film Making Machine Single Screw Extruder 1

TPU (Thermoplastic Polyurethane) extrusion cast film is a specialized manufacturing process for producing high-quality TPU films. TPU films are widely used in applications such as medical and healthcare, textile lamination, automotive interior, and membrane structures. Here are some key points about TPU extrusion cast film:

1. Material formulation and blending: The production process begins with the precise formulation and blending of TPU resins, additives, and colorants to achieve the desired film properties, such as flexibility, durability, and UV resistance.

2. Extrusion and casting process: The TPU extrusion cast film production line is equipped with advanced extrusion and casting equipment to melt the TPU resin and then cast it onto a precise casting drum. This process ensures the formation of a continuous and uniform film.

3. Thickness control: The production line features a sophisticated thickness control system that monitors and adjusts the film thickness during production, ensuring uniformity and meeting specific customer requirements.

4. Customizable film width: The TPU extrusion cast film production line offers flexibility in producing films with various widths, catering to different application needs and market demands.

5. High transparency and clarity: TPU films produced through this process exhibit excellent transparency and clarity, making them suitable for applications where visual aesthetics are important, such as in fashion and apparel.

6. Tailored surface properties: The production line allows for the customization of TPU film surface properties, including matte, glossy, or textured finishes, to meet the specific requirements of diverse end-use applications.

7. Breathability and moisture management: TPU films can be engineered to provide breathability and moisture management properties, making them suitable for applications in the medical and sports industries, such as in wound dressings and performance apparel.

8. Abrasion and puncture resistance: TPU films manufactured through this process can be designed to exhibit exceptional resistance to abrasion and puncture, ensuring durability and longevity in demanding applications.

9. Adhesion capabilities: TPU films have excellent adhesion properties, allowing them to bond well with various substrates, including textiles, non-wovens, and metals, making them ideal for lamination and composite applications.

10. Biocompatibility and sterilizability: TPU films can be engineered to be biocompatible and sterilizable, meeting the stringent requirements of medical and healthcare applications, including surgical drapes, gowns, and medical packaging.

11. UV stability and weather resistance: TPU films can be formulated to withstand UV exposure and harsh weather conditions, making them suitable for outdoor applications, such as architectural membranes and protective covers.

12. Soft-touch and haptic properties: Through precise formulation and processing, TPU films can be tailored to offer soft-touch and pleasant haptic qualities, enhancing user experience in applications like consumer electronics and automotive interiors.

13. Regulatory compliance: The TPU extrusion cast film production line ensures that the films meet relevant industry standards and regulations, including those for food contact, medical devices, and environmental safety.

The TPU extrusion cast film production line offers a versatile and reliable solution for manufacturing high-performance TPU films with tailored properties. Its flexibility, transparency, and adhesion capabilities make it suitable for a wide range of applications, serving industries such as medical, textile, automotive, and outdoor.

Three Layers Tpu Extrusion Cast Film Making Machine Single Screw Extruder 2

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
