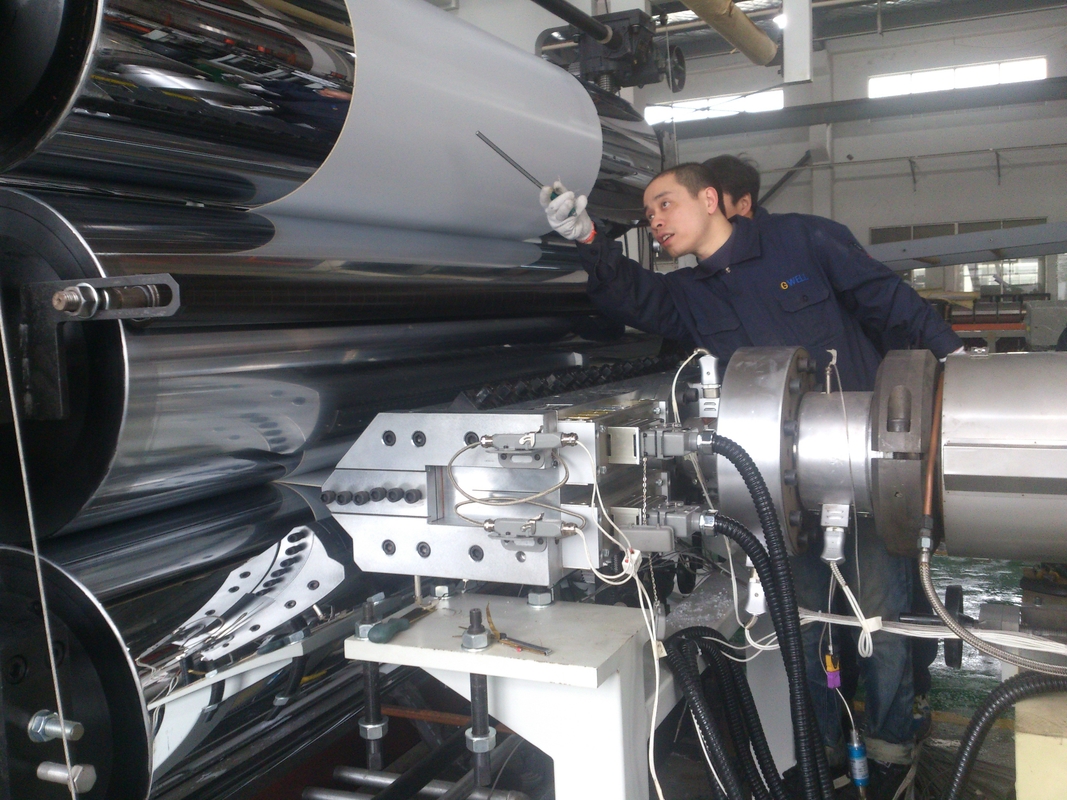

1800mm Transparent Hard Film PVC Sheet Extrusion Machine Equipment

PVC Transparent Hard Film Production Equipment Can Be Designed Independently Factory Direct Sales

1. Features of PVC hard sheet extrusion production line

(1) screw with special mixing function and high plasticizing capacity design.

(2) hanger die head adopts special double throttling design to make plate thickness adjustment more accurate.

(3) temperature control ±1C can accurately control the plasticizing process and product thickness, flatness.

(4) three-roll calender adopts horizontal, vertical or 45 degree tilt type, which can be raised or lowered freely.

(5) plate thickness control adopts screw adjustment and press wheel two-way adjustment to control plate thickness

2. Introduction of PVC sheet production equipment

There are two main methods for making PVC rigid sheet:

(1) Calendering line: thickness 0.15mm-0.55mm, width ≤680mm

(2) Extrusion line: thickness 0.15mm-2.0mm, width ≤1300mm

GWELL machine adopts high-quality poly PVC powder produced by the suspension method as the main raw material, high-quality, high-transparent brand-new PVC sheet produced by formula modification, and can produce colored sheets and various grades of sheets according to customer requirements.

Production specifications: Thickness: 0.2MM---2MM,

Width: 150MM---800MM

3. Introduction of PVC rigid film

PVC extruded transparent sheet has the characteristics of flame retardant and self-extinguishing, high quality and low price, high transparency, good surface gloss, few crystal points, small water lines, strong impact resistance and easy molding. Main uses: food, medicine, electronics packaging of products, spare parts, toys, gifts, cosmetics and other products, and production of various stationery, shoe samples, billboards, and magnetic cards

4. Specification:
