Transparent Hard Plastic PVC Sheet Extrusion Line 350KG/H 0.4 - 10mm Thickness

Transparent Hard Plastic PVC Sheet Extrusion Line 350KG/H 0.4 - 10mm Thickness

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the technical documents are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS
Product Name:
Pvc Transparent Hard Sheet Production Equipment
Machine Type:
PVC Transparent Sheet Extrusion Line
Brand:
GWELL
Suitable Material:
PVC
Width:
600-2000mm
Thickness:
0.4-10 Mm
Screw Design:
Single Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the technical documents are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/year
High Light:

Hard Plastic PVC Sheet Extrusion Line

,

Transparent PVC Sheet Extrusion Line

,

PVC Sheet Extrusion Machine 350KG/H

Product Description

PVC Transparent Hard Sheet Production Equipment Long Life And High Output



1. Introduce of PVC hard sheet production machine

Gwell PVC hard sheet extrusion line adopts single screw extruder with PVC single screw structure, combined with the Gwell vacuum hopper, enables the product to achieve highly transparent effect, and the product will not harden in the cold temperature of 30 degrees below zero. Auxiliary design adhering to the principle of multi-purpose machine, in the case of no need to make any changes to the equipment, can produce three different patterns of PVC curtain without shutting down the machine.



2. Features of PVC hard sheet extrusion production line

(1) screw with special mixing function and high plasticizing capacity design.

(2) hanger die head adopts special double throttling design to make plate thickness adjustment more accurate.

(3) temperature control ±1C can accurately control the plasticizing process and product thickness, flatness.

(4) three-roll calender adopts horizontal, vertical or 45 degree tilt type, which can be raised or lowered freely.

(5) plate thickness control adopts screw adjustment and press wheel two-way adjustment to control plate thickness



3. Introduction of PVC sheet production equipment

There are two main methods for making PVC rigid sheet:

(1) Calendering line: thickness 0.15mm-0.55mm, width ≤680mm

(2) Extrusion line: thickness 0.15mm-2.0mm, width ≤1300mm

GWELL machine adopts high-quality poly PVC powder produced by the suspension method as the main raw material, high-quality, high-transparent brand-new PVC sheet produced by formula modification, and can produce colored sheets and various grades of sheets according to customer requirements.

Production specifications: Thickness: 0.2MM---2MM,

Width: 150MM---800MM



4. Specification:

Type of machine GWZ80/156-1220 GWZ92/188-2000
Width of product                             1220mm--1800mm
Thickness of product 0.15-2mm 0.15-2mm
Output 350KG/H 550KG/H

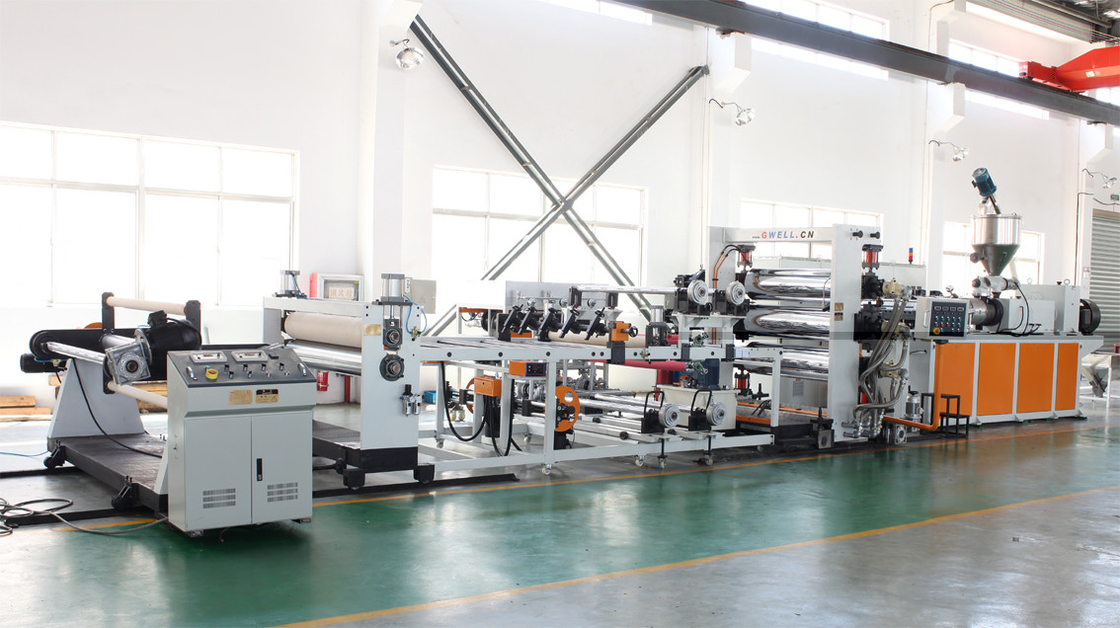

Transparent Hard Plastic PVC Sheet Extrusion Line 350KG/H 0.4 - 10mm Thickness 0






Transparent Hard Plastic PVC Sheet Extrusion Line 350KG/H 0.4 - 10mm Thickness 1

Transparent Hard Plastic PVC Sheet Extrusion Line 350KG/H 0.4 - 10mm Thickness 2

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
