PVC Floor Leather Making Machine PVC Flooring Production Line

PVC Floor Leather Making Machine PVC Flooring Production Line

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets per year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWC92/188 GWC80/156 GWC65/132
Product Name:
PVC Floor Leather Making Machine PVC Flooring Production Line
Machine Type:
Composite Plastic Floor Extrusion Line
Brand:
GWELL
Suitable Material:
PVC
Width:
1500-3000mm
Thickness:
0.8-5mm
Screw Design:
Conical Twin Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets per year
High Light:

Solid wood parquet flooring production line

,

Melamine Laminated Flooring Production Line

,

wooden flooring parquet production line

Product Description

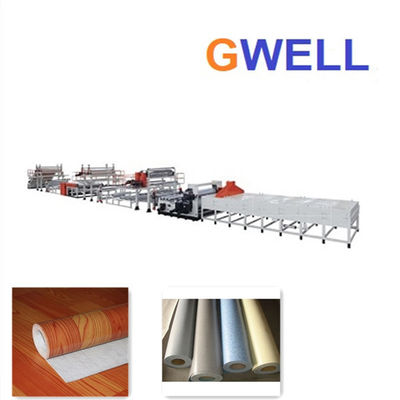

PVC Floor Leather Making Machine PVC Flooring Production Line

1. Explain of PVC floor leather making machine

(1) PVC floor leather making machine is: a single material from top to bottom, laminated with a layer of wear-resistant layer to increase the service life of the floor leather. In the plastic floor, it is suitable for various environmental requirements.

(2) PVC flooring production line is multi-layer core leather combined with homogeneous floor leather. Usually, the surface layer is homogeneous core and the bottom layer is basic layer. The purpose of creating this semi-homogeneous floor is that some customers want homogeneous floor but worry about the price.

PVC floor leather making machine: The main raw material is PVC resin (polyvinyl chloride). There are three types of PVC floor leather making machine: multi-layer composite PVC floor leather machine, homogeneous core PVC floor leather and semi-homogeneous floor leather.

 2. Specification of PVC floor leather making machine:

Type of extruder Conical twin-screw extruder GWC92/188+conical twin-screw extruder GWC92/188 Conical twin-screw extruder GWC65/132+conical twin-screw extruder GWC80/156 Conical twin-screw extruder GWC65/132+conical twin-screw extruder GWC80/156+conical twin-screw extruder GWC65/156
Structure of product Single layer A/B A/B/C
Width of product 2000mm-3000mm 1500mm-3000mm 2000mm-3000mm
Thickness of product 0.8mm-5mm 0.8mm-5mm 0.8mm-5mm
Output 850kg/h-1200kg/h 450kg/h-500kg/h 550kg/h-700kg/h




PVC Floor Leather Making Machine PVC Flooring Production Line 0

PVC Floor Leather Making Machine PVC Flooring Production Line 1
