Synthetic Resin Glazed Tile PVC Roof Board Extrusion Line ASA Co Extrusion Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | GWS120 ; GWC65/132 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 90 days after receiving the down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 sets per year |
|
Detail Information |
|||
| Product Name: | Synthetic Resin Glazed Tile Equipment PVC Roof Board Extrusion Line | Machine Type: | Board Extrusion Line |
|---|---|---|---|
| Brand: | CHINA GWELL | Suitable Material: | PVC Resin, ASA Resin |
| Width: | 1200mm/1400mm/1050mm | Thickness: | 0.8-3mm/0.6-1.5mm/0.5-3mm |
| Screw Design: | Single Screw/Parallel Twin Screw | Country Of Origin: | China |
| Warranty: | One Year | After-sales Service: | Installation And Machine Debug |
| High Light: | Synthetic Resin Glazed Tile Board Extrusion Line,Board Extrusion Line ASA Co extrusion,ASA Co extrusion Machine |
||
Product Description

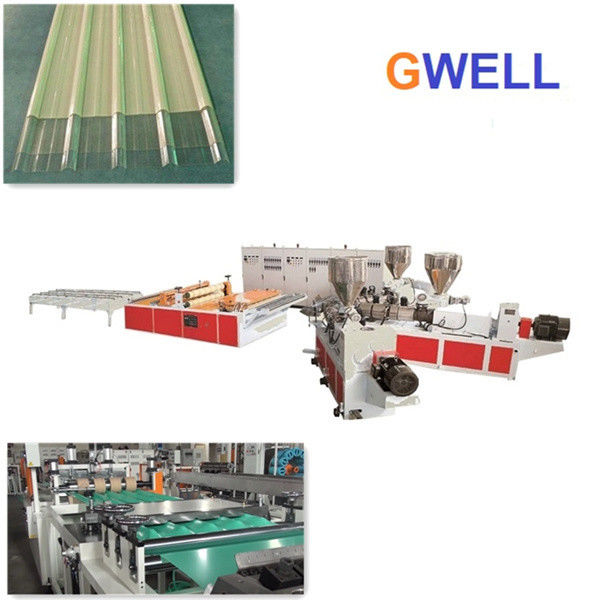

Synthetic Resin Glazed Tile Equipment PVC Roof Board Extrusion Line PVC ASA Co-extrusion Machine
The PVC plastic steel tile production line is mainly composed of:
1. One SZSJ-80 conical twin-screw extruder
2. One single-screw co-extruder
3. One set of plastic-steel tile extrusion mold
4. Plastic-steel tile is equipped with a cooling setting table
5. One tractor
6. A professional cutting machine for plastic steel tile
7. One cooling setting table
PVC plastic steel tile equipment is mainly composed of the above equipments.
1. In terms of price, it is more affordable and practical
2. It has good fire resistance and is a flame retardant material
3. Corrosion resistance---chemical corrosion resistance, more than 3 times longer than zinc plate life
4. Strength and toughness---impact resistance, tensile resistance, not easy to be brittle
5. Weather resistance---Because of the addition of UV anti-ultraviolet agent in the material, the product can truly resist ultraviolet radiation and has a long life.
6. Low noise---low noise when it rains, 30db lower than the noise of metal roof
7. Portability---Easy installation and transportation, saving time and effort
8. Aesthetics---bright color, bright and colorful
9. Environmental protection type---no asbestos content, no release of carcinogenic substances
| Extruder Specification | Conical twin screw GWC65/132-GWC80/156-GWC65/132 | Single screw GWS120-GWS65 | Single screw GWS120 |
| Raw Material | PVC, ASA | PC, ASA | PP, PE |
| Structure of Product | A/B/C, A/B/A, A/B, A | A/B/A, A/B, A | A |
| Wave Shape of Product | Wave; corrugated; scale; hollow corrugated, etc | Wave; corrugated; scale; hollow corrugated, etc | Wave; corrugated; scale; hollow corrugated, etc |
| Thickness of Product | 0.8mm-3mm | 0.6mm-1.5mm | 0.5mm-3mm |
| Width of Product | 1200mm | 1400mm | 1050mm |
| Output | 300kg/h-350kg/h | 350kg/h-400kg/h | 300kg/h-400kg/h |
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
