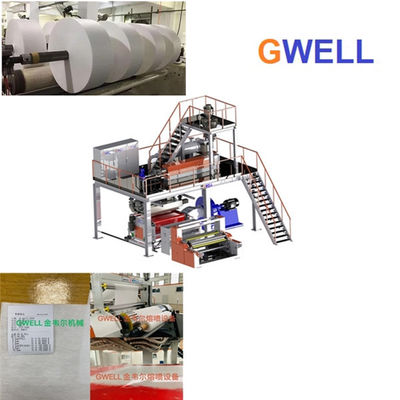

PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment

PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 90-100 days after all the technical requirements are confirmed
Payment Method: L/C, T/T
Supply Capacity: 200 sets/year
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
GWS90-1600
Product Name:
PP Melt-blown Fabric Production Equipment,Factory Direct Sales, Good Quality And Good Price
Machine Type:
Melt Blown Non Woven Production Line
Brand:
GWELL
Suitable Material:
Special Melt-blown PP Material, MFR1500-1800
Width Of Fabric:
1600mm
Range Of Gram:
25-150g/㎡
Screw Design:
Single Screw
Country Of Origin:
China
Warranty:
One Year
After-sales Service:
Installation And Machine Debug
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
90-100 days after all the technical requirements are confirmed
Payment Terms:
L/C, T/T
Supply Ability:
200 sets/year
High Light:

pp spunbond non woven fabric making machine

,

pp spunbond nonwoven production line

,

spunbond manufacturing equipment

Product Description

PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment



1. Meltblown cloth production process

Prepare the raw materials, then feed the raw materials into the extruder for melting. The melt material goes through the screen changer and metering. The melt is sprayed from the spinneret to the forming belt to form as the melt blown cloth. The melt blown cloth is processed by the electrical electret treatment device, and then cut and wound.



2. Advantages of Gwell Mechanical Meltblown Nonwoven Production Line

(1) Adopt special coat hanger type and gas equalizing type spinning die with independent intellectual property rights, and the melt distribution is even.

(2) The air nozzle has stable air pressure, symmetrical air flow on both sides, and uniform air flow in the width direction.

(3) It is convenient to adjust the width of the air gap.

(4) It adopts a specially designed hot air heating device, which has very good heating efficiency and excellent heat exchange efficiency, and low energy consumption.

(5) The receiving distance is adjustable, and the receiving form is flat network receiving, which is convenient for maintenance.

(6) The fiber size and cloth surface are uniform.

(7) The electret treatment makes the melt blown cloth have a good filtering effect. There are two electret methods, one is electric electret, and the other is water electret.

(8) Using our machine and our exclusive production process, we can manufacture melt blown cloth with filtration grade above 95. Fully comply with current international standards. It is suitable for manufacturing medical masks, N95 masks and other high-grade masks.



3. Machine model

Machine model GWS65 GWS90 GWS120
Suitable material                                      PP
Width(mm) 800mm 1600mm 2400mm
Output(kg/day) 350-450 1000--1500 2000--2500





PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment 0



The raw material of the mask is polypropylene (PP). The medical surgical mask is generally multi-layer structure, commonly referred to as SMS structure, as shown in Figure 1 and Figure 2.
The S in the mask layer stands for spunbonded fiber, with a coarse fiber diameter of about 20 microns (nm). The two layers of spunbonded fiber mainly support the whole non-woven fabric structure, and have no obvious effect on the barrier performance. The most important layer inside the mask is the barrier layer or melt-blown layer (M). The fibers in the meltblown layer are relatively thin, about 2 microns (M) in diameter, and thus only one-tenth the diameter of the spunbond layer, which is essential to keep bacteria and blood out of the layer.

The fibers of the spun adhesive layer, the meltblown layer, and the shape of the hair are compared. As shown in the figure, 1/3 of the diameter of the hair is close to the fibers of the spun adhesive layer, and 1/3 of the diameter of the hair is close to the fibers of the meltblown layer

PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment 1

PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment 2

PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment 3

Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.



PP Plastic Meltblown Nonwoven Middle Layer Production Line Equipment 4
