MOQ: | 1 pc |
Price: | Negotiable |
Standard Packaging: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
Delivery Period: | 15-30 days after receiving the down payment |
Payment Method: | L/C, T/T |
Supply Capacity: | 30 unit/month |

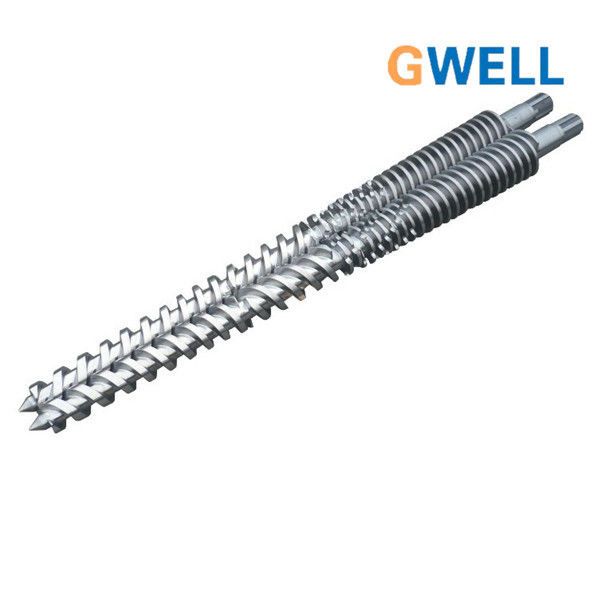

Conical Double Screw For Extruder , Plasticized Conical Double Screw
Introduction to Conical Twin Screw
1. Conical twin-screw is different from parallel twin-screw in appearance. Its two ends have different diameters. The diameter of the feeding section is large, while the diameter of the homogenization section is small, and the middle is gradually transitioned. The conical twin-screw is a meshing type, most of which are counter-rotating. Two conical screws mesh with each other in the barrel and rotate in opposite directions, and there is a reasonable gap between the top of the spiral edge of one screw and the root of the other screw. Due to the counter-rotation, the spiral path of the material on one screw is blocked by the other screw, and the material can only move axially through the gaps in each part under the push of the screw.
2. When the material passes through the radial gap between the two screws, it is like passing through the nip of two rollers. The stirring and shearing are very intense. Therefore, the plasticization of the material is very uniform, which is especially suitable for processing PVC plastics.
3. GWELL company uses high-precision machine tools to process the screw, so that the processed screw has higher precision.
Specification:
Model | Hardness | L/D |
65 | HV 900~1000 | customized |
80 | ||
92 |
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
