Plastic Granules High Speed Mixer For Plastic Raw Material Mixing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GWELL |
| Certification: | CE |
| Model Number: | Horizontal three-roller |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS |
| Delivery Time: | 25-45 days after receiving the down payent |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20-30 units/month |
|
Detail Information |
|||
| Product Name: | Plastic Mixing Machine , Used For Mixing Various Plastics | Machine Type: | Auxiliary Facilities And Accessories |
|---|---|---|---|
| Brand: | GWELL | Suitable Material: | PP PS PC PMMA PET GPPS MS |
| Width Of Roller: | Customized | Roller Diameter: | Customized |
| Roller Material: | Alloy Steel | Transmission Type: | Independent Drive |
| Country Of Origin: | China | Warranty: | Guarantee Period |
| After-sales Service: | Installation And Machine Commissioning | ||
| High Light: | plastic mixer machine,plastic granules mixing machine,plastic pellets mixer machine |
||
Product Description
Plastic Mixing Machine , Used For Mixing Various Plastics

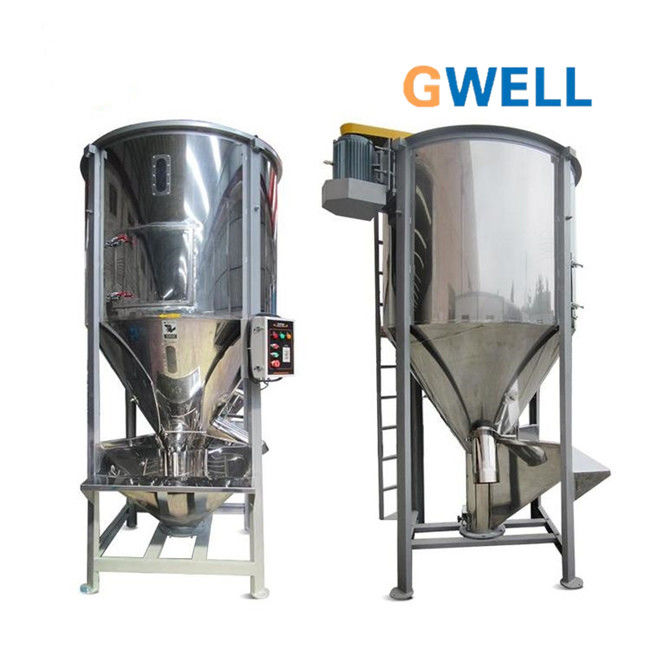

1. Working principle of vertical mixer
It uses the rapid rotation of the screw to lift the raw materials from the bottom of the barrel from the center to the top, and then fly them in an umbrella shape and return to the bottom, so that the raw materials are tumbling up and down in the barrel and mixed, and a large amount of raw materials can be uniformly mixed in a short time. complete
Mixer features: easy to clean, made of stainless steel, easy to clean without rust, evenly mixed, and fast mixing speed, which can ensure the consistency of each batch of materials;
2. Advantages of vertical mixer
Cost-saving, with small investment and quick results, less land occupation, labor saving, and high efficiency; it can be customized; it can be customized according to the height of the customer's workshop; the village material is optional; the heating function can be customized.
3. Operation instructions for vertical mixer
(1) A dry run test machine should be carried out before use. Before the test machine, the firmness of all the connections of the large plastic drying mixer, the amount of lubricating oil in the reducer and the integrity of the electrical equipment should be checked, and then the total Switch, turn on the power supply, and perform dry running test machine;
(2) Dry run test machine test. It can be used normally only if there is no abnormal noise, high heating of the bearing gear, and direct temperature rise of the reducer.
(3) If it is necessary to scrape the material on the inner barrel wall of the machine during operation, use bamboo and wood tools and do not use your hands to avoid injury to your hands;
(4) If it is found that the machine vibrates abnormally or makes abnormal strange noises during use, the large plastic vertical mixer should be stopped immediately for a comprehensive inspection;
(5) The use load should not be too large. Generally, it is determined by the load of the motor. The heavy load current of the 380V motor when mixing plastic is normal. If the load is exceeded, the amount of mixing should be reduced immediately.
(6) The shaft seals at both ends of the mixing screw should be kept clean to avoid blackening and deterioration of the plastic. There are square holes on the outer gears at both ends of the large mixing barrel, which should be unblocked. Do not block the large plastic vertical mixer to avoid it The back pressure effect causes the dirt to penetrate into the shaft, and the material in the vat is blackened and deteriorated
(7) Managers must be familiar with the technical performance, internal structure, control structure and operating principles of large-scale plastic vertical mixers. Do not leave the work place during operation to prevent malfunctions and damage to the machine parts, and to ensure safe production as a prerequisite;
(8) Turn on the power, open the cover of the color mixing machine, hold the safety protection switch by hand, and then press the green start switch, pay attention to the motor rotation (clockwise rotation), if the direction is reversed, please press the red switch to stop and turn off the power , Check and adjust.
(9) After confirming that the motor rotates correctly, it can be put into production normally. Please set the time according to the required mixing time of different materials (the timer is adjustable from 0 to 30 minutes) for production use.
4.Crusher models
| Model(mm) | 500 | 600 | 800 | 1000 |
| Diameter(mm) | 500 | 600 | 800 | 1000 |
| Crushing capacity(kg/h) | 200--300 | 350--600 | 600--800 | 1000--1500 |
Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
