Vertical 3 Three Roll Calender Machine For Making Plastic Sheet 11KW

Vertical 3 Three Roll Calender Machine For Making Plastic Sheet 11KW

MOQ: 1 set
Price: Negotiable
Standard Packaging: STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Period: 15-30 days after receiving the down payment
Payment Method: L/C, T/T
Supply Capacity: 20 units/month
Detail Information
Place of Origin
China
Brand Name
GWELL
Certification
CE
Model Number
1000/1500/2000
Product Name:
Vertical Three-roller Calender For Making Plastic Sheets
Type:
1000/1500/2000
Brand:
GWELL
Suitable Material:
PET PP PS PVC PC ABS ASA EVA POE
Width:
600-3000mm
Diameter:
200-600mm
Structure:
Flat, Vertical, Inclined, L-shape
Country Of Origin:
China
Warranty:
Guarantee Period
After-sales Service:
Installation And Machine Commissioning
Minimum Order Quantity:
1 set
Price:
Negotiable
Packaging Details:
STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS
Delivery Time:
15-30 days after receiving the down payment
Payment Terms:
L/C, T/T
Supply Ability:
20 units/month
Product Description

Vertical three-roller calender for making plastic sheets



Description:

The three-roll calender is mainly used to calender the high-temperature melt extruded from the cloth-hanger type mold and maintain a certain thickness to form the required products.
According to the structure type, it can be divided into three types: vertical type, inclined vertical type and horizontal type. According to the three-roller transmission mode, it can be divided into chain transmission, worm gear transmission and independent transmission.
Users can comprehensively consider the selection according to the products produced, operating habits and economy. Our company can also undertake custom-made special three-roll calenders.



Features:

Inclined inclined type and cooling coiling auxiliary machine are matched.
1. The roller of the calender adopts a jacket structure with high exchange rate and is equipped with an automatic temperature control hot water exchanger, with high temperature control accuracy and uniform roller surface temperature; the working surface of the roller is plated with hard chromium and processed by ultra-precision mirror surface.
2. The reduction box is a hard-tooth surface combined gear box with high transmission accuracy and smooth movement.
3. The roller is driven by a speed-adjusting motor and controlled by an imported speed-adjusting controller; the speed can be monotonous or linked according to the setting. The speed range is wide and the precision is high.
4. The auxiliary machine adopts a bridge type slow cooling roller table, and is equipped with trimming, waste collection, traction, winding and other devices; it can also be equipped with embossing device and fixed-length cutting machine to further expand the use of the unit and the cooling and winding auxiliary machine.



Specification:

Number Item Quantity Unit Remark
1 Drive motor 3 Units Power about 11KW
2 Roller 3 Units
3 Gearbox 3 Units
4 Cooling system 1 Set Water cooling
5 Other Accessories 1 Set

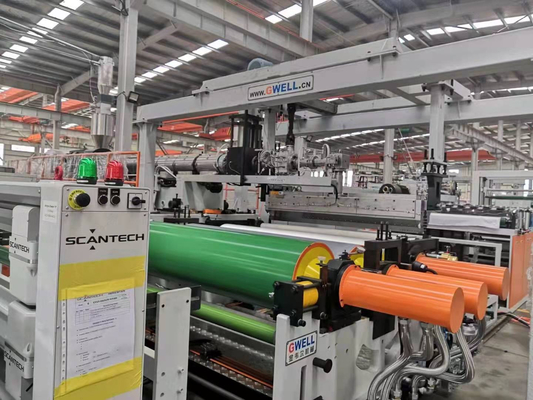

Vertical 3 Three Roll Calender Machine For Making Plastic Sheet 11KW 0


Gwell Machinery is a high-tech enterprise, committed to providing customers with plastic sheet, board, film and other extrusion lines. Gwell can provide turnkey projects, such as stone paper project, EVA solar film project, PP building formwork equipment,etc. Gwell has a strong technical equipment strength and key capacity, committed to high-end product development, international market development. “Realize customer value" is the company's long-term business philosophy.The manufacturing bases of the company are located in Taicang, Suzhou, which is close to the beautiful scenery of Shanghai, Yancheng Dafeng, the hometown of Red-crowned crane, and Nantong, the hometown of Education and longevity in China. It covers a total area about 150,000 square meters. It has an annual production capacity of more than 200 extrusion lines of various types of sheet and board.
